Actuator-Mode Door-Front

Component ID: 3
Component : ACTUATOR-MODE DOOR-FRONT

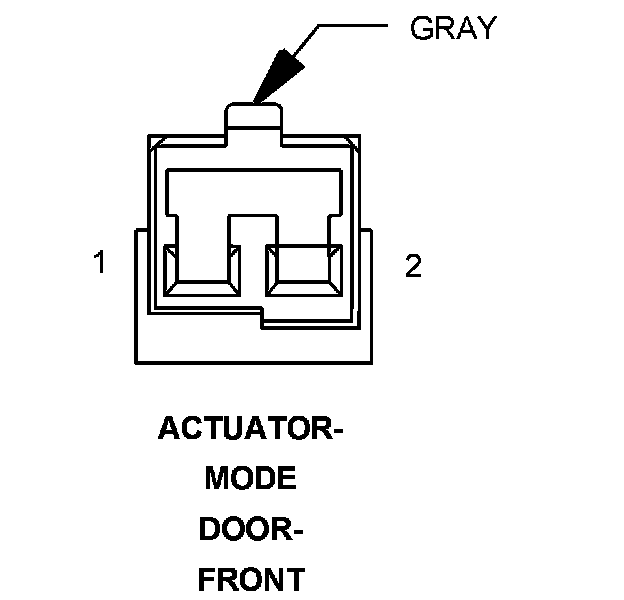

Connector:
Name : ACTUATOR-MODE DOOR-FRONT
Color : GRAY
# of pins : 2




Pin Description Circuit
1 FRONT MODE DOOR DRIVER (A) C35 20LB/OR
2 FRONT MODE DOOR DRIVER (B) C135 20DB/GY
2 COMMON DOOR DRIVER (B) C34 20DB/LB

Component Location - 20
