Actuator-Recirculation Door

Component ID: 4

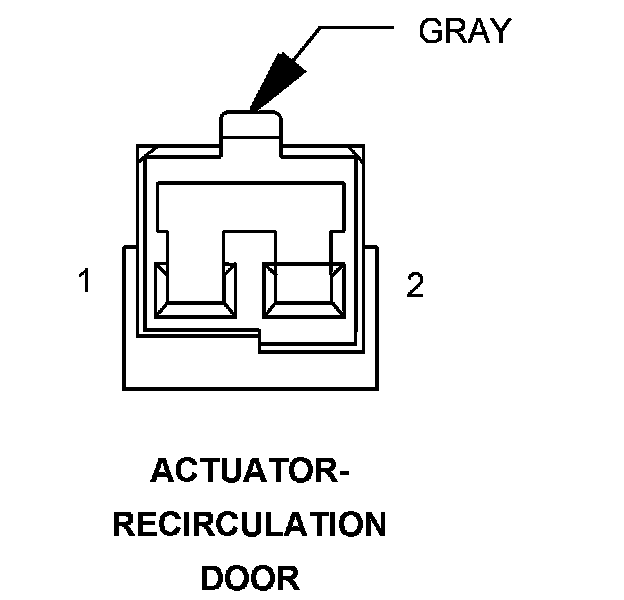

Component : ACTUATOR-RECIRCULATION DOOR

Connector:
Name : ACTUATOR-RECIRCULATION DOOR
Color : GRAY
# of pins : 2




Pin Description Circuit
1 RECIRCULATION DOOR DRIVER (A) C32 20DB/TN
2 RECIRCULATION DOOR DRIVER (B) C132 20DB/YL
2 COMMON DOOR DRIVER (B) C34 20DB/LB

Component Location - 20
