C200

Component ID: 33
Component : C200

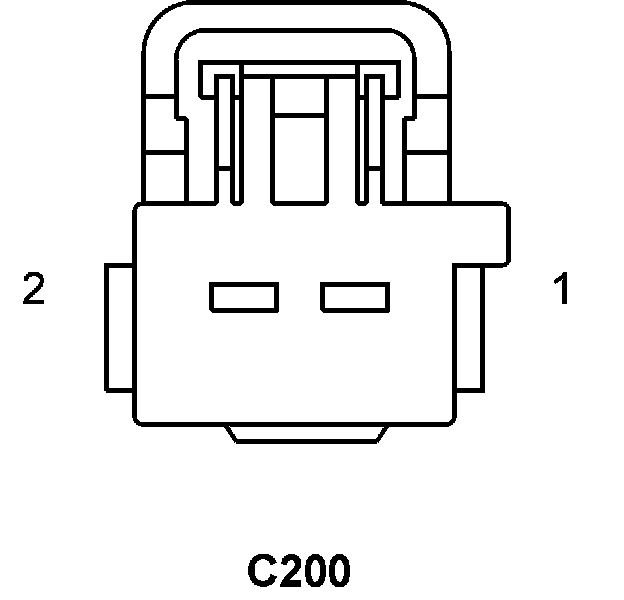

Connector:
Name : C200
Color :
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 FUSED ACCESSORY RELAY OUTPUT F306 16DB/PK
2 GROUND Z746 16BK/DB

Component Location - 14




Component Location - 23

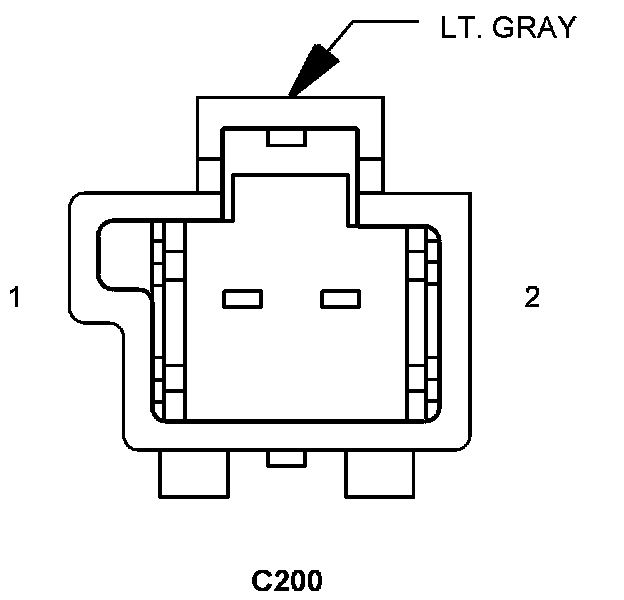

Connector:
Name : C200
Color : LT. GRAY
# of pins : 2
Gender : MALE




Pin Description Circuit
1 FUSED ACCESSORY RELAY OUTPUT F306 16DB/PK
2 GROUND Z746 16BK/DB

Component Location - 14




Component Location - 23
