C202

Component ID: 35
Component : C202

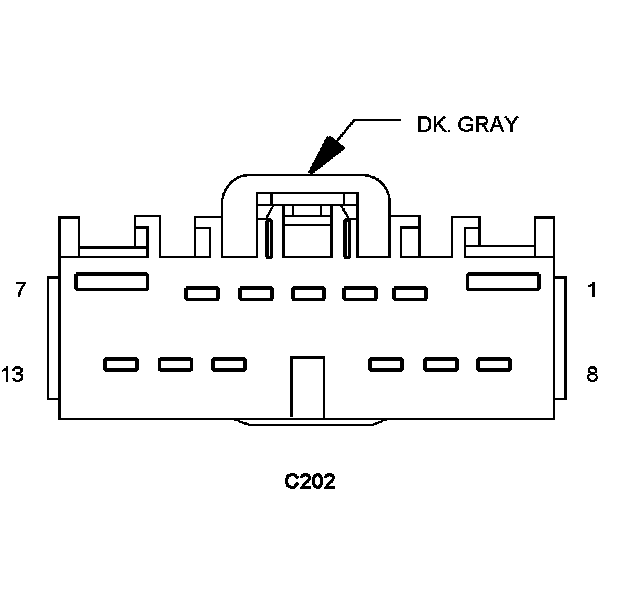

Connector:
Name : C202
Color : DK. GRAY
# of pins : 13
Gender : FEMALE




Pin Description Circuit
1 GROUND Z134 12BK/LG
2 FRONT BLOWER MOTOR CONTROL C56 20LB/DB
2 COMMON DOOR DRIVER (B) C34 22DB/LB
3 RECIRCULATION DOOR DRIVER (A) C32 20TN/DB
3 RECIRCULATION DOOR DRIVER (A) C32 22DB/TN
4 PASSENGER BLEND DOOR DRIVER (A) C33 22LB/BR
5 DRIVER BLEND DOOR DRIVER (A) C61 22DB/LG
6 FRONT MODE DOOR DRIVER (A) C35 22LB/OR
7 FUSED FRONT BLOWER MOTOR RELAY OUTPUT C7 12DB
8 RECIRCULATION DOOR DRIVER (B) C132 20DB/YL
9 PASSENGER BLEND DOOR DRIVER (B) C133 22DB/WT
10 DRIVER BLEND DOOR DRIVER (B) C161 20LB/WT
11 FRONT MODE DOOR DRIVER (B) C135 20DB/GY
12 EVAPORATOR TEMPERATURE SENSOR SIGNAL C21 20LG/DB
12 EVAPORATOR TEMPERATURE SENSOR SIGNAL C21 22LG/DB
13 SENSOR GROUND C121 20DB/DG

Component Location - 14




Component Location - 15




Component Location - 20






Connector:
Name : C202
Color : DK. GRAY
# of pins : 13
Gender : MALE




Pin Description Circuit
1 GROUND Z134 12BK/OR
2 FRONT BLOWER MOTOR CONTROL C56 20LB/DB
2 COMMON DOOR DRIVER (B) C34 22DB/LB
3 RECIRCULATION DOOR DRIVER (A) C32 20TN/DB
3 RECIRCULATION DOOR DRIVER (A) C32 20DB/TN
4 PASSENGER BLEND DOOR DRIVER (A) C33 20LB/BR
5 DRIVER BLEND DOOR DRIVER (A) C61 20DB/LG
6 FRONT MODE DOOR DRIVER (A) C35 20LB/OR
7 FUSED FRONT BLOWER MOTOR RELAY OUTPUT C7 12DB
8 RECIRCULATION DOOR DRIVER (B) C132 20DB/YL
9 PASSENGER BLEND DOOR DRIVER (B) C133 20DB/WT
10 DRIVER BLEND DOOR DRIVER (B) C161 20LB/WT
11 FRONT MODE DOOR DRIVER (B) C135 20DB/GY
12 EVAPORATOR TEMPERATURE SENSOR SIGNAL C21 20DB/LG
13 SENSOR GROUND C121 20DB/DG

Component Location - 14




Component Location - 15




Component Location - 20
