C204

Component ID: 36
Component : C204

Connector:
Name : C204
Color : LT. GRAY
# of pins : 12
Qualifier : (DVD)
Gender : FEMALE

Pin Description Circuit
1 FUSED B(+) X114 20GY/TN
2 SHIELD X955 22
3 VIDEO SIGNAL X515 22GY/OR
4 HEADPHONE AUDIO SIGNAL RIGHT X960 22GY/WT
5 HEADPHONE AUDIO SIGNAL LEFT X961 22GY/OR
6 VIDEO RETURN X530 20GY/DB
7 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) X211 20YL/GY
8 VIDEO CONTROL X915 22GY/LB
9 VIDEO PLAY SIGNAL X555 22VT/OR
10 HEADPHONE RETURN X962 22DG/WT
11 SHIELD X955 22
12 HEADPHONE I/R XMTR ENABLE X963 22WT

Component Location - 14

Component Location - 18

Component Location - 44

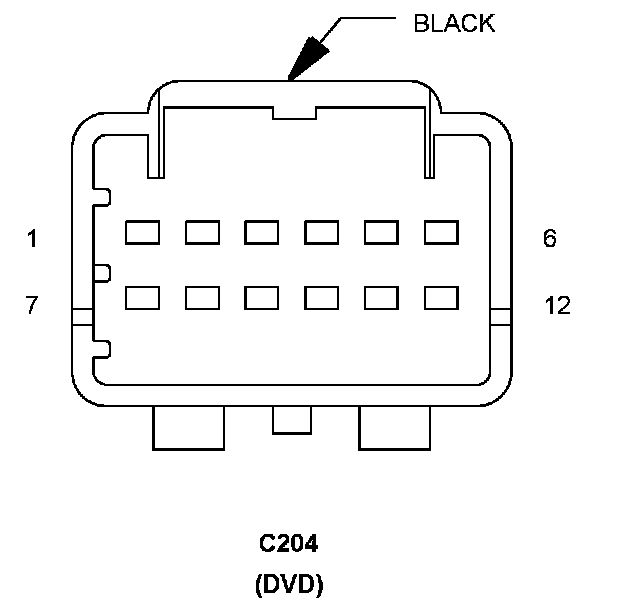

Connector:
Name : C204
Color : BLACK
# of pins : 12
Qualifier : (DVD)
Gender : MALE

Component Location - 18

Component Location - 44
