C301

Component ID: 39
Component : C301

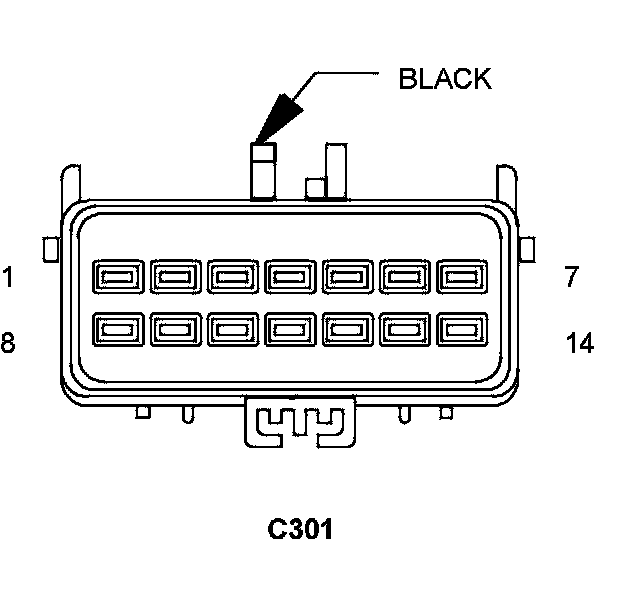

Connector:
Name : C301
Color : BLACK
# of pins : 14
Gender : FEMALE

Pin Description Circuit
1 GROUND G983 20VT/OR
2 AMPLIFIED LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
3 AMPLIFIED LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
4 DRIVER REAR WINDOW DRIVER (DOWN) Q211 14TN/LB
5 FUSED B(+) A215 18RD/LG
6 AUTO DAY/NIGHT MIRROR (+) P112 20TN/OR
7 AUTO DAY/NIGHT MIRROR (-) P114 20TN/WT
8 FUSED DOOR NODE RELAY OUTPUT F516 12PK
9 PANEL LAMPS DRIVER E25 20OR/GY
10 DRIVER REAR WINDOW DRIVER (UP) Q111 14TN/YL
11 DRIVER REAR WINDOW SWITCH MUX Q1 20OR/WT
12 PCI BUS D25 20WT/VT
13 FLASH PROGRAM ENABLE D123 20WT/BR
14 GROUND Z821 12BK/BR

Component Location - 25

Component Location - 41

Connector:
Name : C301
Color : BLACK
# of pins : 14
Gender : MALE

Component Location - 41
