C302

Component ID: 40
Component : C302

Connector:

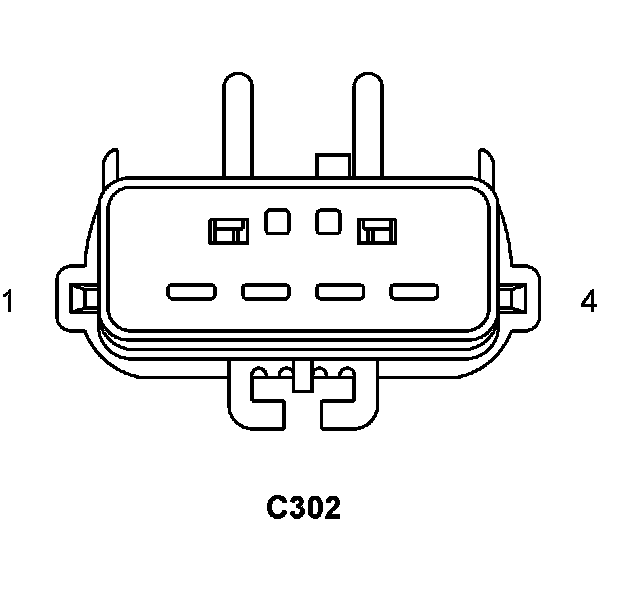

Name : C302
Color :
# of pins : 4
Gender : FEMALE




Pin Description Circuit
1 - -
2 FUSED B(+) A916 12RD/VT
3 - -
4 - -

Component Location - 25




Component Location - 41






Connector:

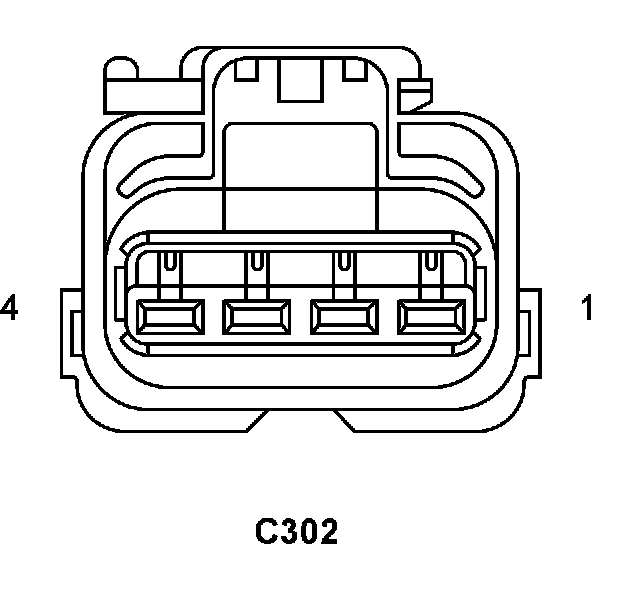

Name : C302
Color :
# of pins : 4
Gender : MALE




Pin Description Circuit
1 - -
2 FUSED B(+) A916 14RD/VT
3 - -
4 - -

Component Location - 25




Component Location - 41
