C303

Component ID: 41
Component : C303

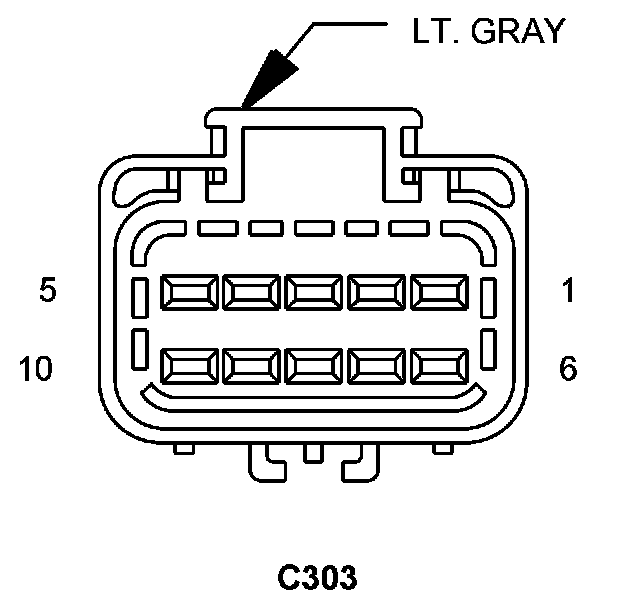

Connector:
Name : C303
Color : LT. GRAY
# of pins : 10
Gender : FEMALE




Pin Description Circuit
1 DRIVER REAR WINDOW DRIVER (UP) Q111 14TN/YL
2 DRIVER REAR WINDOW DRIVER (DOWN) Q211 14TN/LB
3 LEFT REAR DOOR AJAR SWITCH SENSE G77 20VT/GY
4 DOOR LOCK DRIVER P222 18VT/DG
5 DOOR UNLOCK DRIVER P292 18VT/LG
6 PANEL LAMPS DRIVER E25 20OR/GY
7 GROUND G983 20VT/OR
8 DRIVER REAR WINDOW SWITCH MUX Q1 20OR/WT
9 AMPLIFIED LEFT REAR DOOR SPEAKER (+) X205 18GY/LG
10 AMPLIFIED LEFT REAR DOOR SPEAKER (-) X295 18GY/DG

Component Location - 27




Component Location - 43

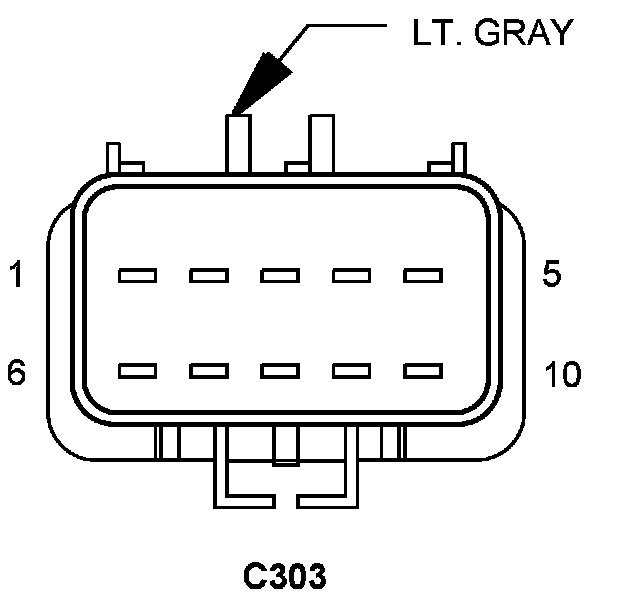

Connector:
Name : C303
Color : LT. GRAY
# of pins : 10
Gender : MALE




Pin Description Circuit
1 DRIVER REAR WINDOW DRIVER (UP) Q111 14OR/BR
2 DRIVER REAR WINDOW DRIVER (DOWN) Q211 14OR/VT
3 LEFT REAR DOOR AJAR SWITCH SENSE G77 20VT/YL
4 DOOR LOCK DRIVER P222 18VT/DG
5 DOOR UNLOCK DRIVER P292 18VT/LG
6 PANEL LAMPS DRIVER E25 20OR/GY
7 GROUND G983 20VT/TN
8 DRIVER REAR WINDOW SWITCH MUX Q1 20WT/TN
9 AMPLIFIED LEFT REAR DOOR SPEAKER (+) X205 18DG/LG
10 AMPLIFIED LEFT REAR DOOR SPEAKER (-) X295 18DG/GY

Component Location - 27




Component Location - 43
