C305

Component ID: 43
Component : C305

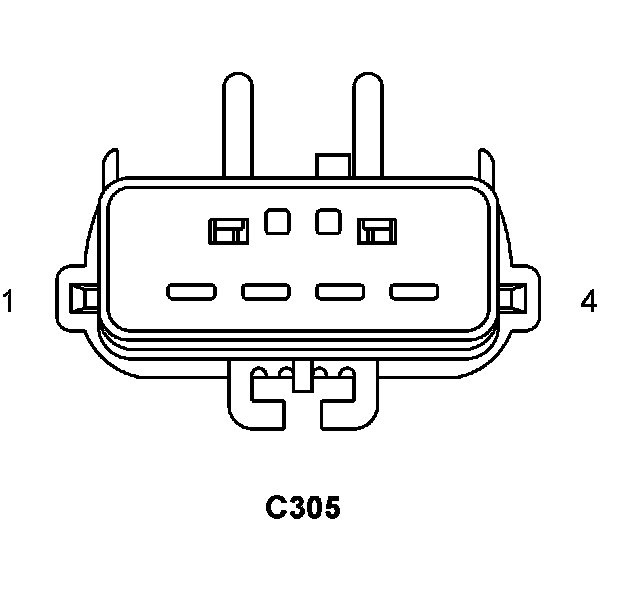

Connector:
Name : C305
Color :
# of pins : 4
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) A916 12RD/VT
2 - -
3 - -
4 - -

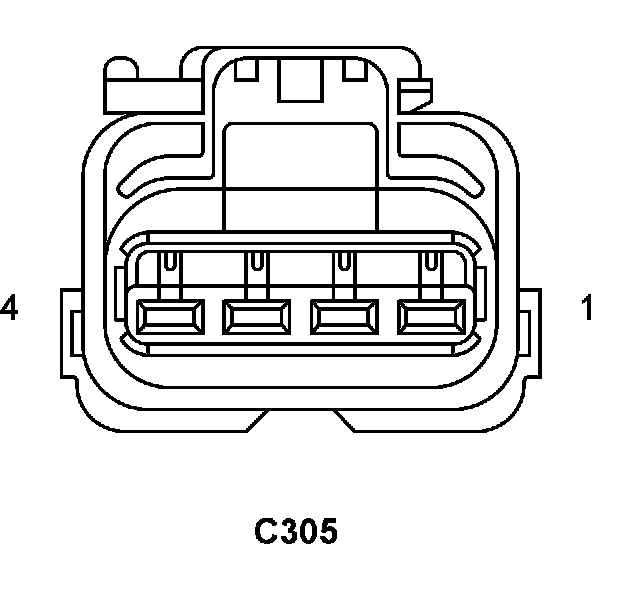

Connector:
Name : C305
Color :
# of pins : 4
Gender : MALE




Pin Description Circuit
1 FUSED B(+) A916 14RD/VT
2 - -
3 - -
4 - -
