C308

Component ID: 46
Component : C308

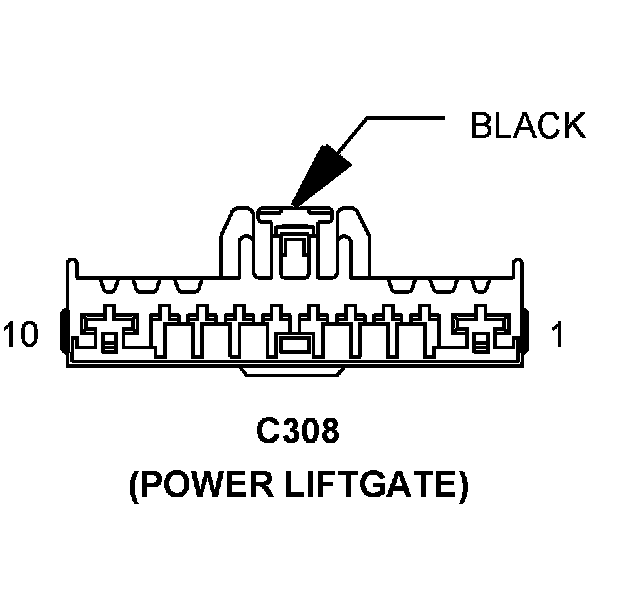

Connector:
Name : C308
Color : BLACK
# of pins : 10
Qualifier : (POWER LIFTGATE)
Gender : FEMALE




Pin Description Circuit
1 LIFTGATE LATCH RELEASE DRIVER Q85 16TN/WT
2 LEFT PINCH SENSOR SIGNAL Q75 20OR/LB
3 LIFTGATE LATCH CINCH DRIVER Q84 16TN/GY
4 LOGIC GROUND Q901 20OR/VT
5 LIFTGATE LATCH CLUTCH DRIVER Q83 18OR/GY
6 LIFTGATE PAWL SWITCH SENSE Q60 22OR/YL
7 LIFTGATE CHIME DRIVER Q94 22TN/LG
8 BACKUP LAMP DRIVER L1 18WT/LG
9 - -
10 LIFTGATE TEMPERATURE SENSOR SIGNAL G32 20VT/LB

Component Location - 29




Component Location - 45

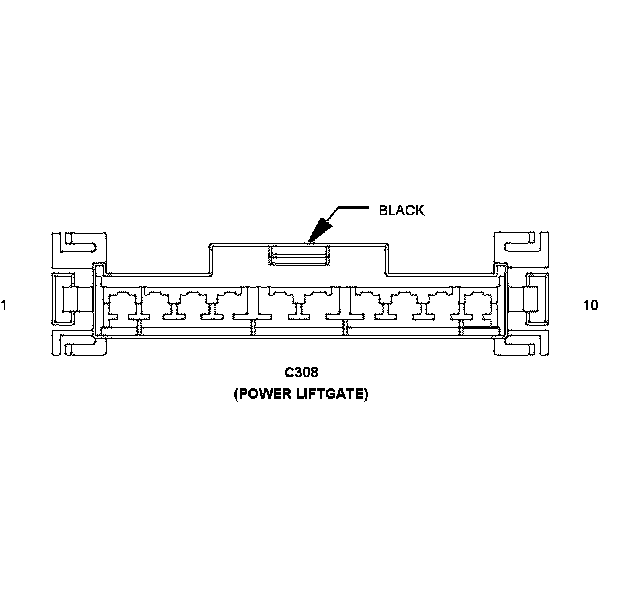

Connector:
Name : C308
Color : BLACK
# of pins : 10
Qualifier : (POWER LIFTGATE)
Gender : MALE




Pin Description Circuit
1 LIFTGATE LATCH RELEASE DRIVER Q85 16TN/WT
2 LEFT PINCH SENSOR SIGNAL Q75 20OR/LB
3 LIFTGATE LATCH CINCH DRIVER Q84 16TN/GY
4 LOGIC GROUND Q901 20OR/VT
5 LIFTGATE LATCH CLUTCH DRIVER Q83 18OR/GY
6 LIFTGATE PAWL SWITCH SENSE Q60 22OR/YL
7 LIFTGATE CHIME DRIVER Q94 22TN/LG
8 BACKUP LAMP DRIVER L1 20WT/LG
9 - -
10 LIFTGATE TEMPERATURE SENSOR SIGNAL G32 22VT/LB

Component Location - 29




Component Location - 45
