C310

Component ID: 47
Component : C310

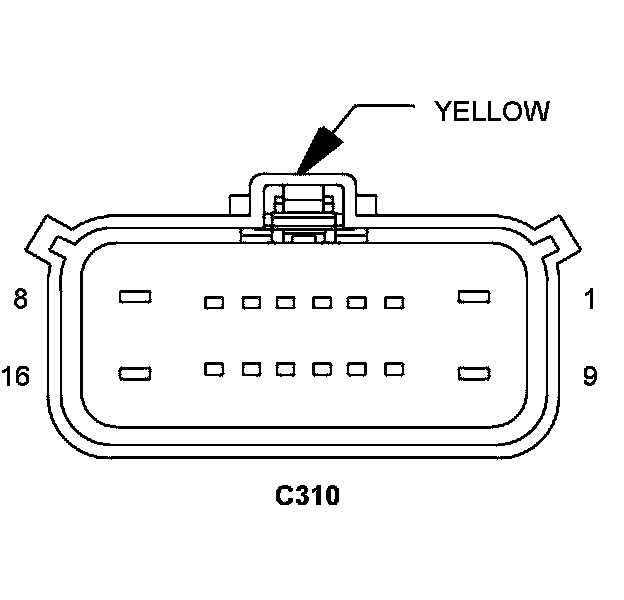

Connector:
Name : C310
Color : YELLOW
# of pins : 16
Gender : FEMALE




Pin Description Circuit
1 PASSENGER SEAT RECLINER UP DRIVER P44 14LG/DG
2 - -
3 - -
4 - -
5 PASSENGER SEAT HEATER B(+) DRIVER P95 18LG/WT
6 PASSENGER SEAT HEATER GROUND P97 18LG/YL
7 - -
8 PASSENGER SEAT HORIZONTAL FORWARD DRIVER P14 14LG/OR
9 PASSENGER SEAT HORIZONTAL REARWARD DRIVER P16 14LG/BR
10 ORC RUN-START DRIVER F201 20PK/LB
11 SEAT BELT TENSION SENSOR POWER R86 20LG/LB
12 BELT TENSION SENSOR SIGNAL R105 20WT/OR
13 PCI BUS D25 20WT/VT
14 GROUND Z104 20BK/LG
15 SEAT BELT TENSION SENSOR GROUND R986 20LG/BR
16 PASSENGER SEAT RECLINER DOWN DRIVER P42 14LG/GY

Component Location - 26

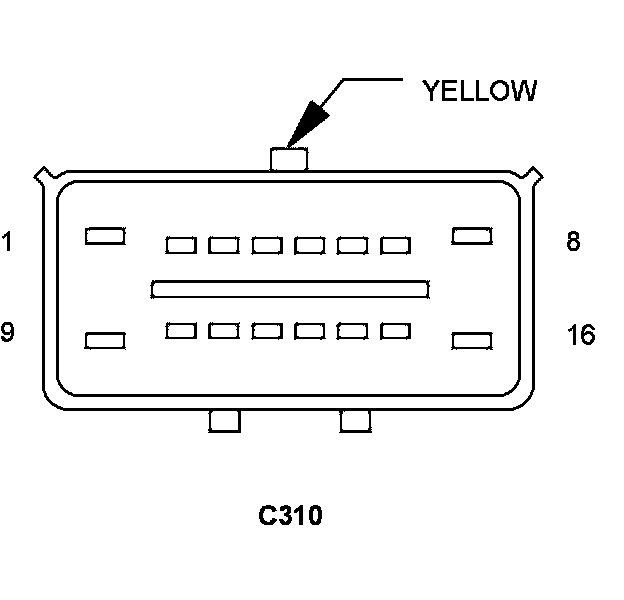

Connector:
Name : C310
Color : YELLOW
# of pins : 16
Gender : MALE




Pin Description Circuit
1 PASSENGER SEAT RECLINER UP DRIVER P44 14LG/DG
2 - -
3 - -
4 - -
5 PASSENGER SEAT HEATER B(+) DRIVER P95 18LG/WT
6 PASSENGER SEAT HEATER GROUND P97 18LG/YL
7 - -
8 PASSENGER SEAT HORIZONTAL FORWARD DRIVER P14 14LG/OR
9 PASSENGER SEAT HORIZONTAL REARWARD DRIVER P16 14LG/BR
10 ORC RUN-START DRIVER F201 20PK/OR
11 BELT TENSION SENSOR FEED R86 20LG/LB
12 BELT TENSION SENSOR SIGNAL R105 20WT/OR
13 PCI BUS D25 20WT/VT
14 GROUND Z104 20BK/LG
15 BELT TENSION SENSOR GROUND R986 20LG/BR
16 PASSENGER SEAT RECLINER DOWN DRIVER P42 14LG/GY

Component Location - 26
