C312

Component ID: 48
Component : C312

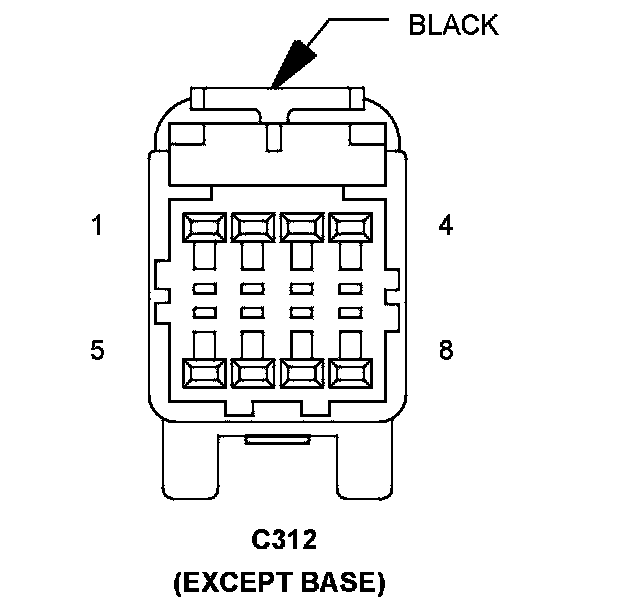

Connector:
Name : C312
Color : BLACK
# of pins : 8
Qualifier : (EXCEPT BASE)
Gender : FEMALE




Pin Description Circuit
1 VOICE RECOGNITION/PHONE SWITCH SIGNAL X730 20BR/GY
2 SUNROOF OPEN Q3 22OR/TN
3 SUNROOF CLOSE Q5 22OR/LB
4 MICROPHONE 1 IN (+) X712 20BR
5 MICROPHONE IN (-) X792 20BR/BK
6 SENSOR GROUND X835 20BR/OR
7 MICROPHONE 2 IN (+) X722 20BR/WT
8 SUNROOF VENT Q4 20OR/WT

Component Location - 25




Component Location - 44

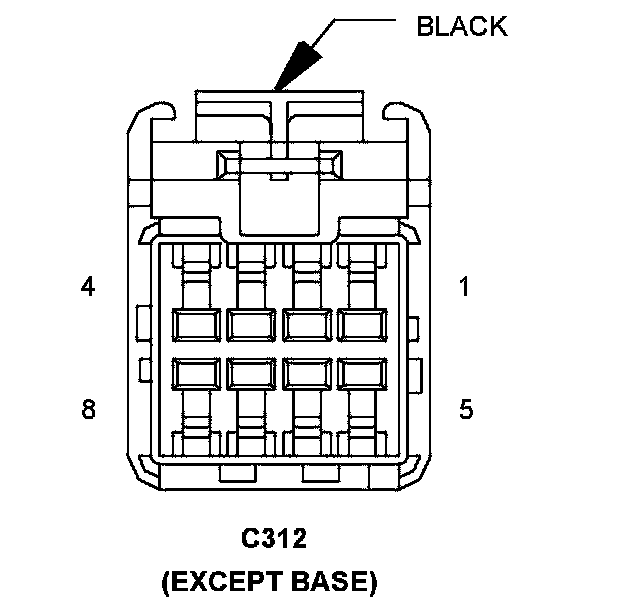

Connector:
Name : C312
Color : BLACK
# of pins : 8
Qualifier : (EXCEPT BASE)
Gender : MALE




Pin Description Circuit
1 VOICE RECOGNITION/PHONE SWITCH SIGNAL X730 20GY/YL
2 SUNROOF OPEN Q3 20OR/TN
3 SUNROOF CLOSE Q5 20OR/LB
4 MICROPHONE 1 IN (+) X712 20DG/LB
5 MICROPHONE IN (-) X792 20LB/DG
6 SENSOR GROUND X835 20OR/GY
7 MICROPHONE 2 IN (+) X722 20DG/WT
8 SUNROOF VENT Q4 20OR/WT

Component Location - 25




Component Location - 44
