C313

Component ID: 49
Component : C313

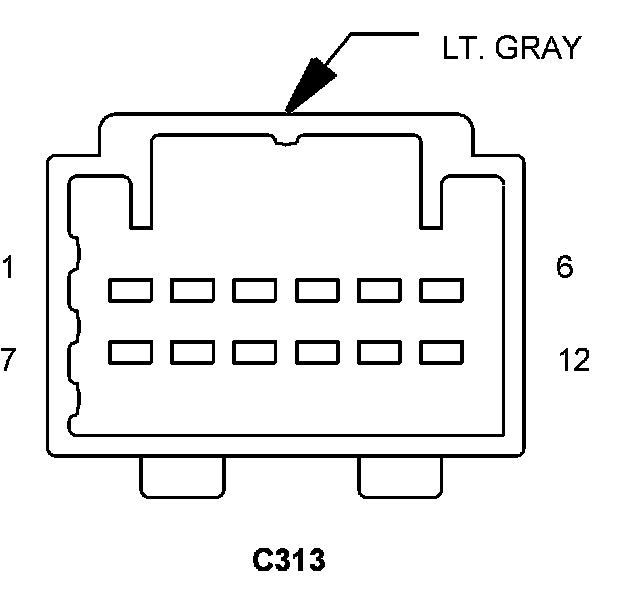

Connector:
Name : C313
Color : LT. GRAY
# of pins : 12
Gender : FEMALE




Pin Description Circuit
1 RAIL LAMPS DRIVER M27 18YL/LB
2 COURTESY LAMPS DRIVER M22 18YL/OR
3 FRONT READING/COURTESY LAMPS DRIVER M24 18YL/WT
4 LIFTGATE SWITCH MUX G25 22VT/TN
5 PCI BUS D25 20WT/VT
6 FUSED ACCESSORY RELAY OUTPUT F316 20BK/PK
7 AUTO DAY/NIGHT MIRROR (+) P112 20BK/OR
8 AUTO DAY/NIGHT MIRROR (-) P114 20BK/LB
9 FUSED B(+) A114 20GY/RD
10 GROUND Z327 18BK/WT
11 MICROPHONE FEED X793 20DG/YL
12 GROUND Z113 18BK/DB

Component Location - 25




Component Location - 44

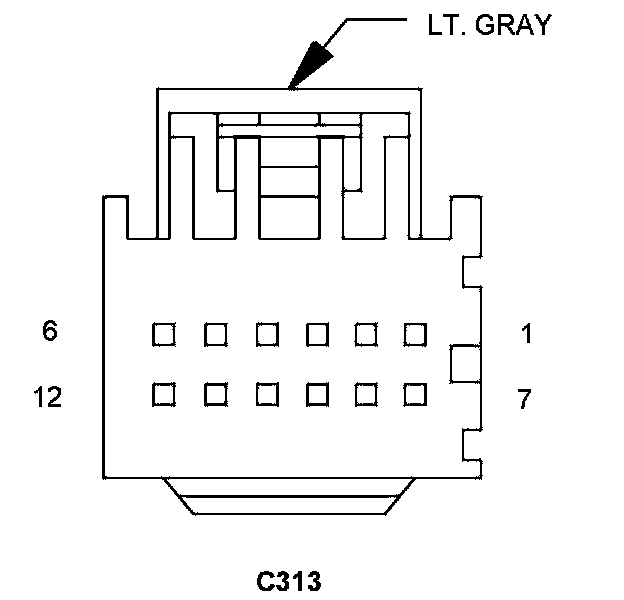

Connector:
Name : C313
Color : LT. GRAY
# of pins : 12
Gender : MALE




Pin Description Circuit
1 RAIL LAMPS DRIVER M27 18YL/LB
2 COURTESY LAMPS DRIVER M22 18YL/OR
3 FRONT READING/COURTESY LAMPS DRIVER M24 18YL/WT
4 LIFTGATE SWITCH MUX G25 20VT/TN
5 PCI BUS D25 20WT/VT
5 PANEL LAMPS DRIVER E12 18OR/GY
6 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
7 AUTO DAY/NIGHT MIRROR (+) P112 20TN/OR
8 AUTO DAY/NIGHT MIRROR (-) P114 20TN/WT
9 FUSED B(+) A114 20GY/RD
10 GROUND Z327 18BK/WT
11 - -
12 GROUND Z113 18BK/DB

Component Location - 25




Component Location - 44
