C316

Component ID: 51
Component : C316

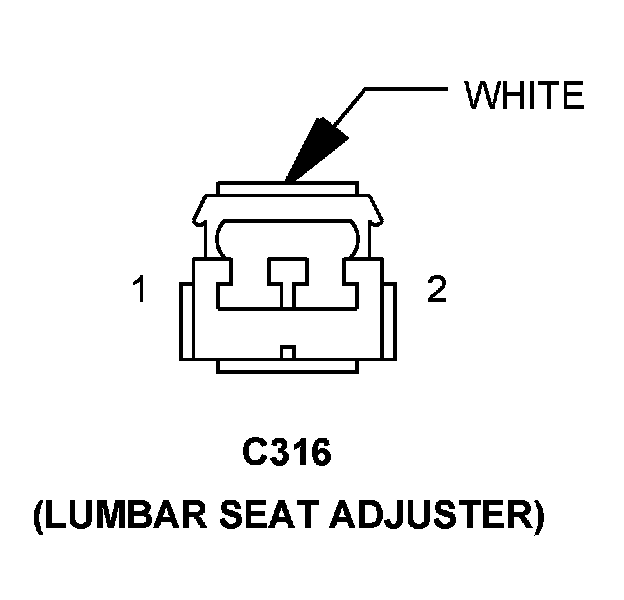

Connector:
Name : C316
Color : WHITE
# of pins : 2
Qualifier : (LUMBAR SEAT ADJUSTER)
Gender : FEMALE




Pin Description Circuit
1 DRIVER SEAT LUMBAR IN DRIVER P107 18DB
2 DRIVER SEAT LUMBAR OUT DRIVER P105 18PK

Component Location - 39






Connector:
Name : C316
Color : WHITE
# of pins : 2
Qualifier : (LUMBAR SEAT ADJUSTER)
Gender : MALE




Pin Description Circuit
1 DRIVER SEAT LUMBAR IN DRIVER P107 18LG/WT
2 DRIVER SEAT LUMBAR OUT DRIVER P105 18LG

Component Location - 39
