C317

Component ID: 52
Component : C317

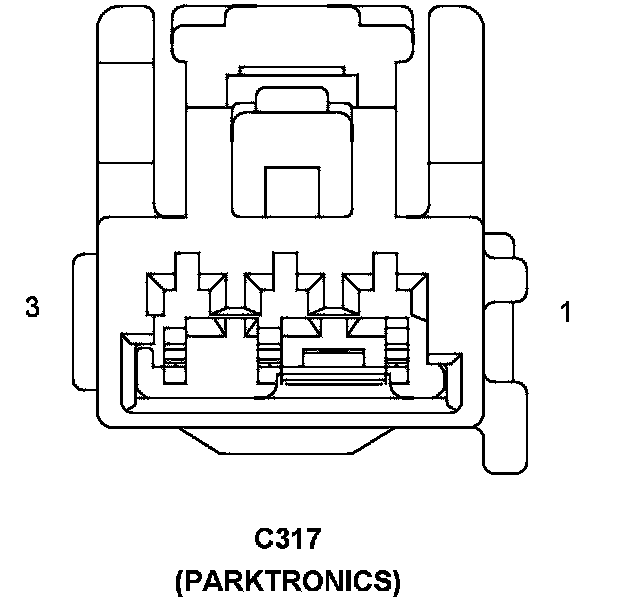

Connector:
Name : C317
Color :
# of pins : 3
Qualifier : (PARKTRONICS)
Gender : FEMALE




Pin Description Circuit
1 PARK ASSIST DISPLAY SUPPLY X777 20DG/GY
2 PARK ASSIST DISPLAY GROUND Z171 20GY/BK
3 PARK ASSIST DISPLAY SIGNAL D777 20WT/GY

Component Location - 29

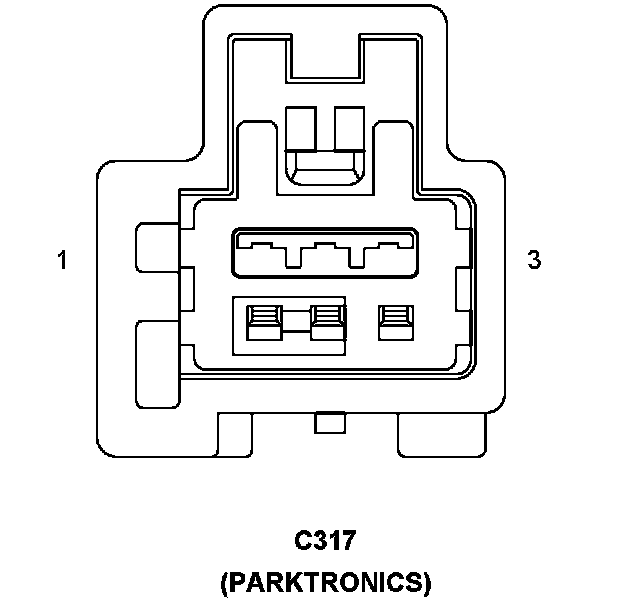

Connector:
Name : C317
Color :
# of pins : 3
Qualifier : (PARKTRONICS)
Gender : MALE




Pin Description Circuit
1 PARK ASSIST DISPLAY SUPPLY X777 20DG/GY
2 PARK ASSIST DISPLAY GROUND Z171 20GY/BK
3 PARK ASSIST DISPLAY SIGNAL D777 20WT/GY

Component Location - 29
