C318

Component ID: 53
Component : C318

Connector:
Name : C318
Color :
# of pins : 6
Qualifier : (PARKTRONICS)
Gender : FEMALE

Pin Description Circuit
1 PARK ASSIST SENSOR SUPPLY X700 20GY/OR
2 PARK ASSIST SENSOR NO. 7 SIGNAL D700 20WT/GY
3 PARK ASSIST SENSOR NO. 8 SIGNAL D701 20WT/LB
4 PARK ASSIST SENSOR NO. 9 SIGNAL D703 20WT/OR
5 PARK ASSIST SENSOR NO. 10 SIGNAL D704 20WT/DB
6 PARK ASSIST SENSOR GROUND X750 20GY/LB

Component Location - 28

Component Location - 37

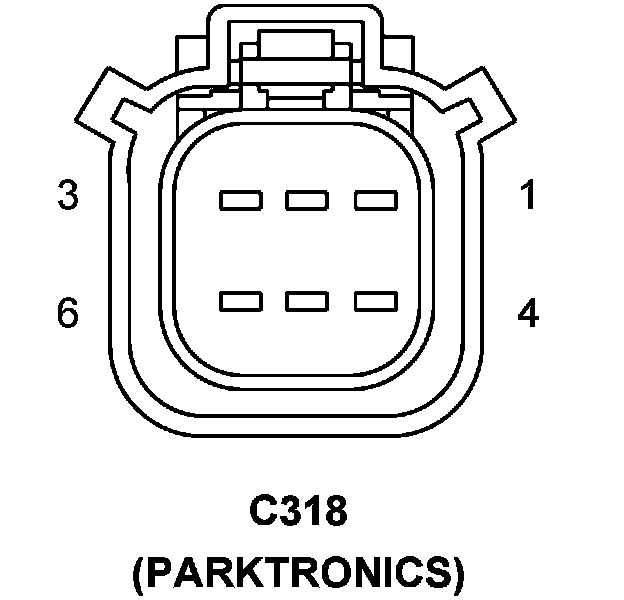

Connector:
Name : C318
Color :
# of pins : 6
Qualifier : (PARKTRONICS)
Gender : MALE

Component Location - 37
