Canister Purge Solenoid

Component ID: 393
Component : SOLENOID-EVAP/PURGE

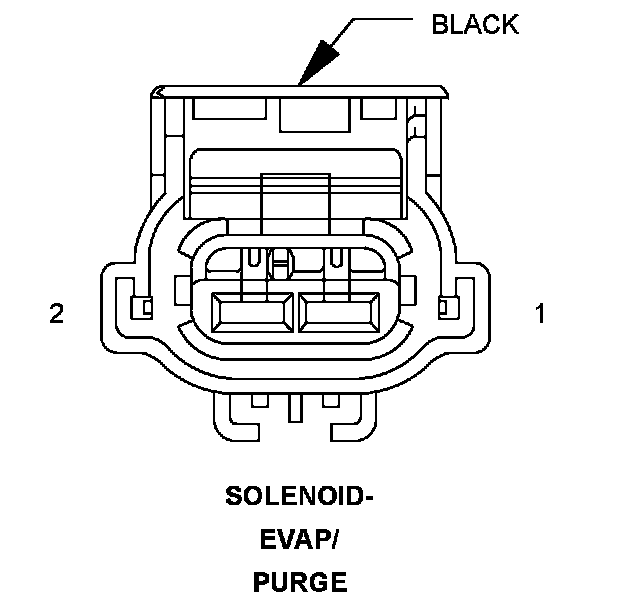

Connector:
Name : SOLENOID-EVAP/PURGE
Color : BLACK
# of pins : 2




Pin Description Circuit
1 EVAP PURGE CONTROL K52 20DB/WT
2 EVAP PURGE RETURN K70 20DB/BR

Component Location - 13
