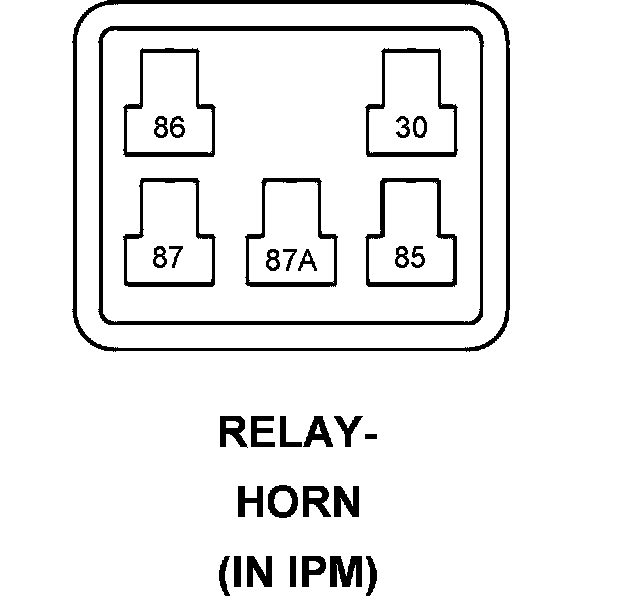

Horn Relay

Component ID: 233
Component : RELAY-HORN

Connector:
Name : RELAY-HORN
Color :
# of pins : 0




30 FUSED B(+) INTERNAL
85 FUSED B(+) INTERNAL
86 HORN RELAY CONTROL INTERNAL
87 HORN RELAY OUTPUT X2 16DG/OR
87A - -
