Oil Pressure Sender
Oil Pressure Sender
Component ID:
411

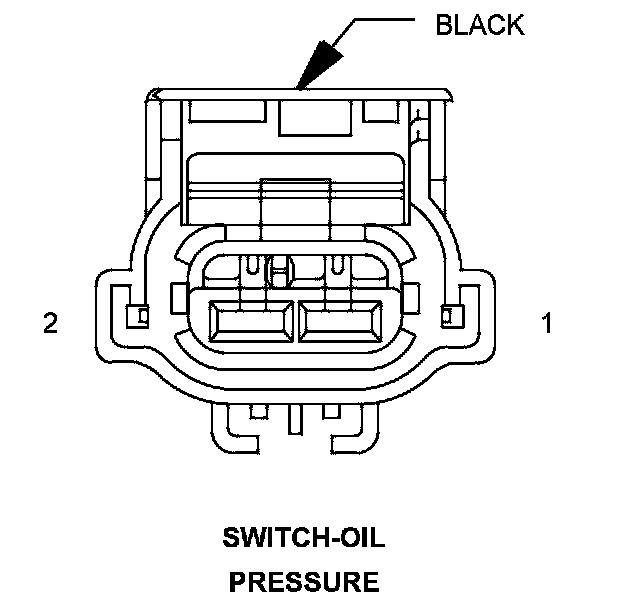

Component :
SWITCH-OIL PRESSURE
Connector:
Name :
SWITCH-OIL PRESSURE
Color :
BLACK
# of pins :
2
Pin
Description
Circuit
1
OIL PRESSURE SIGNAL
G6 16VT/GY
2
-
-
Component Location - 11
Component Location - 13
