Motor-Seat Adjuster-Driver Recliner

Component ID: 206
Component : MOTOR-SEAT ADJUSTER-DRIVER RECLINER

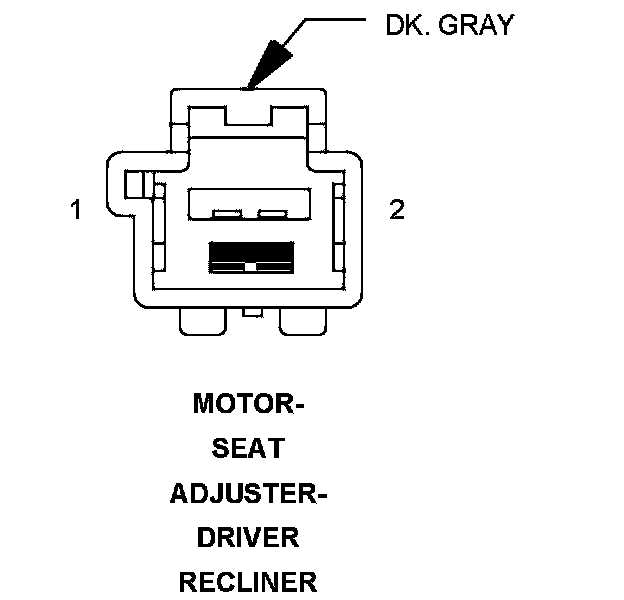

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER RECLINER
Color : DK. GRAY
# of pins : 2




Pin Description Circuit
1 DRIVER SEAT RECLINER DOWN DRIVER P141 14LG/BR
2 DRIVER SEAT RECLINER UP DRIVER P143 14LG/GY

Component Location - 39
