Motor-Seat Adjuster-Passenger Recliner

Component ID: 208

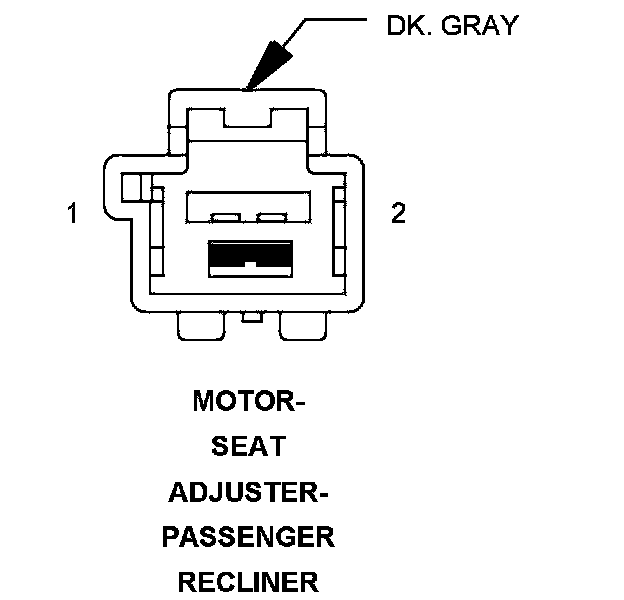

Component : MOTOR-SEAT ADJUSTER-PASSENGER RECLINER

Connector:
Name : MOTOR-SEAT ADJUSTER-PASSENGER RECLINER
Color : DK. GRAY
# of pins : 2




Pin Description Circuit
1 PASSENGER SEAT RECLINER DOWN DRIVER P42 14LG/GY
2 PASSENGER SEAT RECLINER UP DRIVER P44 14LG/DG
