Heated-Seat Middle Row-Left

Component ID: 128
Component : HEATED-SEAT MIDDLE ROW-LEFT

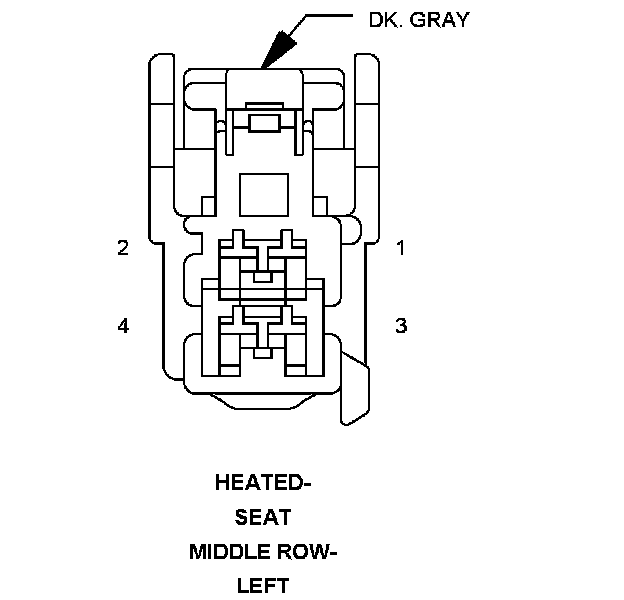

Connector:
Name : HEATED-SEAT MIDDLE ROW-LEFT
Color : DK. GRAY
# of pins : 4




Pin Description Circuit
1 LEFT MIDDLE ROW SEAT HEATER B(+) DRIVER P187 16LG/BR
2 GROUND Z870 18BK/YL
3 MIDDLE ROW SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY P189 20LG/WT
4 LEFT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT P197 20LG/DG

Component Location - 27
