Heater-Seat Back-Passenger

Component ID: 131
Component : HEATER-SEAT BACK-PASSENGER

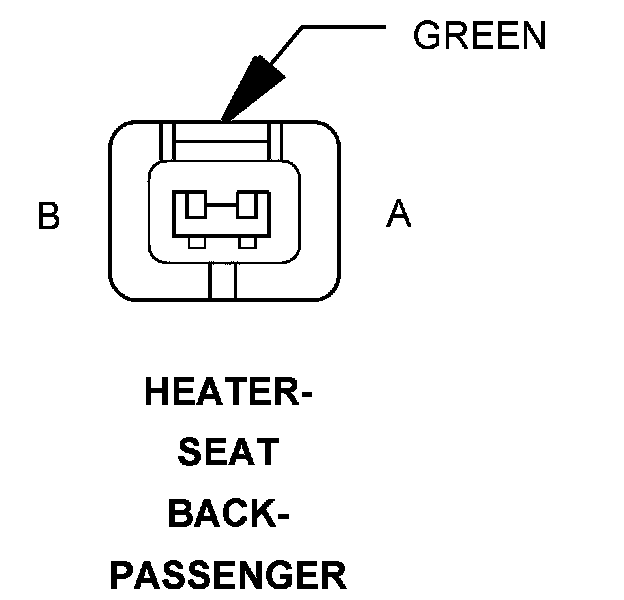

Connector:
Name : HEATER-SEAT BACK-PASSENGER
Color : GREEN
# of pins : 2




A PASSENGER HEATED SEAT DRIVER P98 18BK
B PASSENGER SEAT HEATER GROUND P97 18BK

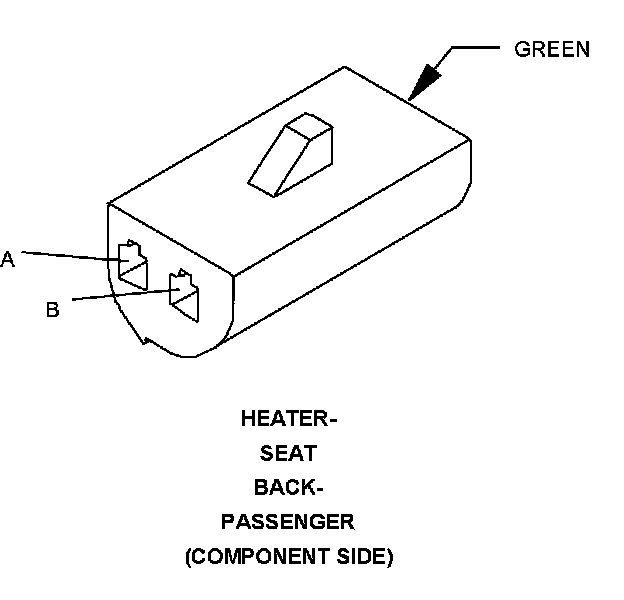

Connector:
Name : HEATER-SEAT BACK-PASSENGER
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




A PASSENGER HEATED SEAT DRIVER BK
B PASSENGER SEAT HEATER GROUND BK
