Heater-Seat Cushion-Passenger

Component ID: 133
Component : HEATER-SEAT CUSHION-PASSENGER

Connector:
Name : HEATER-SEAT CUSHION-PASSENGER
Color : DK. GRAY
# of pins : 4




Pin Description Circuit
1 PASSENGER SEAT HEATER B(+) DRIVER P95 18LG/WT
2 - -
3 - -
4 PASSENGER SEAT HEATER GROUND P97 18LG/YL

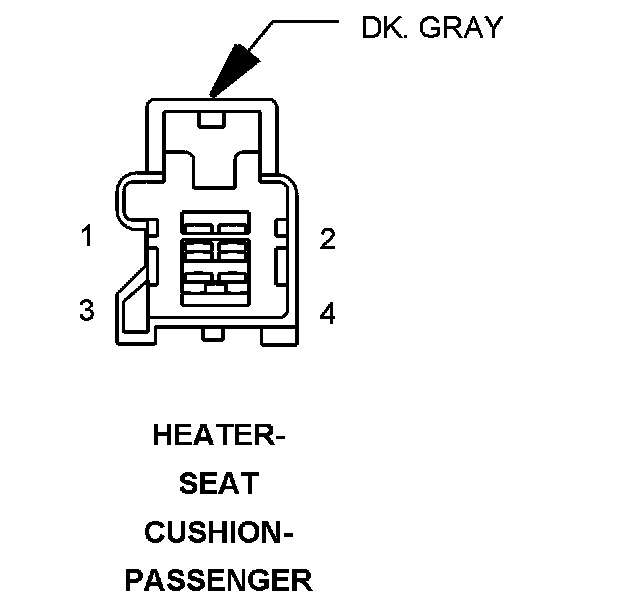

Connector:
Name : HEATER-SEAT CUSHION-PASSENGER
Color : DK. GRAY
# of pins : 4

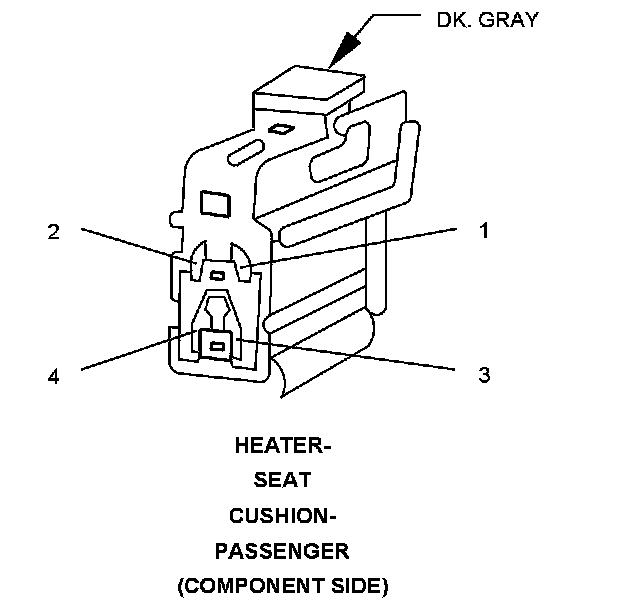

Qualifier : (COMPONENT SIDE)




Pin Description Circuit
1 PASSENGER SEAT HEATER B(+) DRIVER RD
2 - -
3 - -
4 PASSENGER SEAT HEATER GROUND BK
