Speaker-Instrument Panel-Center

Component ID: 394

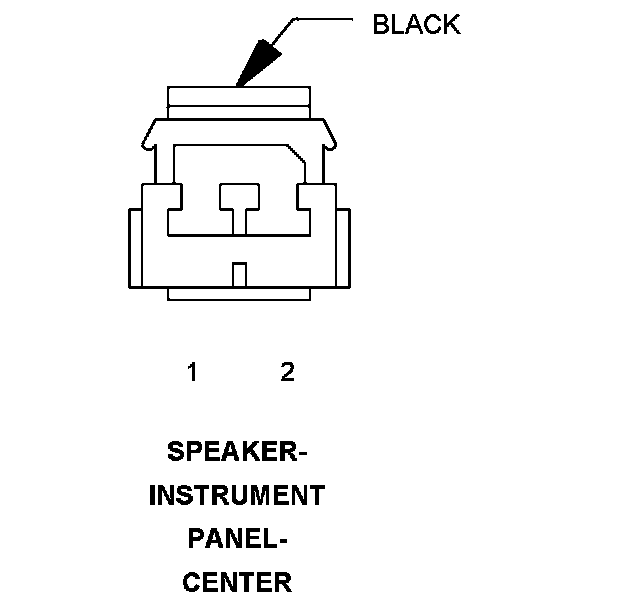

Component : SPEAKER-INSTRUMENT PANEL-CENTER

Connector:
Name : SPEAKER-INSTRUMENT PANEL-CENTER
Color : BLACK
# of pins : 2




Pin Description Circuit
1 AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (+) X200 18GY/DB
2 AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (-) X290 18GY/OR

Component Location - 14




Component Location - 17
