Speaker-Left Front Door-Tweeter

Component ID: 395

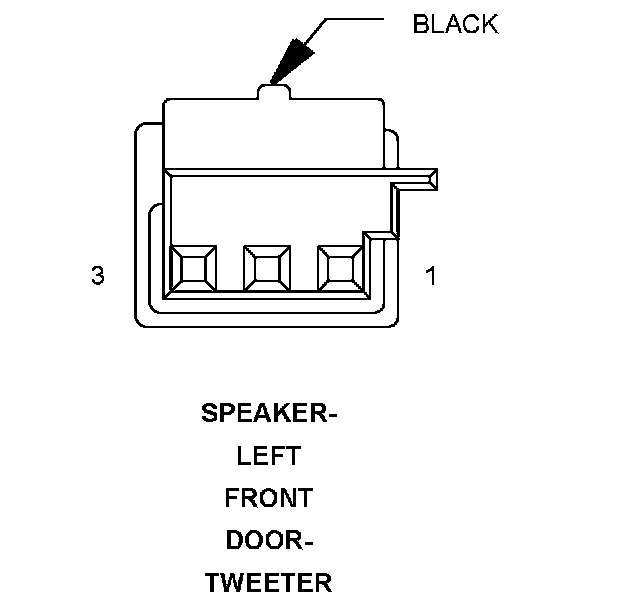

Component : SPEAKER-LEFT FRONT DOOR-TWEETER

Connector:
Name : SPEAKER-LEFT FRONT DOOR-TWEETER
Color : BLACK
# of pins : 3




Pin Description Circuit
1 AMPLIFIED LEFT FRONT DOOR SPEAKER (+) X201 20GY/VT
2 - -
3 AMPLIFIED LEFT FRONT DOOR SPEAKER (-) X291 20GY/YL

Component Location - 41
