Speaker-Left Front Door-Woofer

Component ID: 396
Component : SPEAKER-LEFT FRONT DOOR-WOOFER

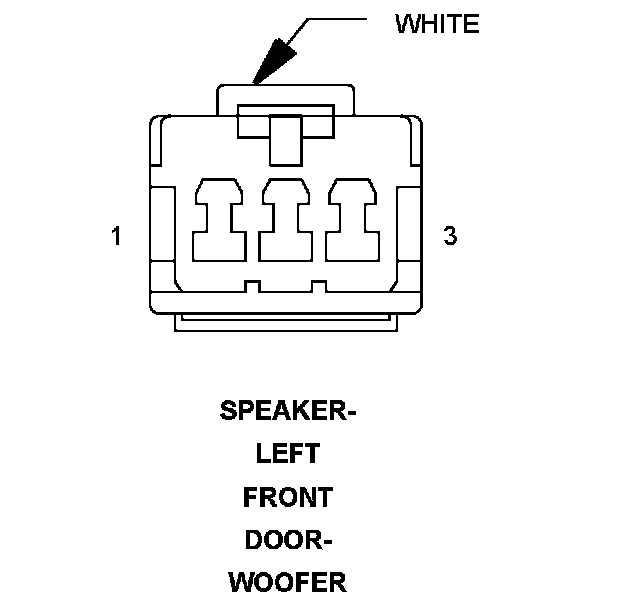

Connector:
Name : SPEAKER-LEFT FRONT DOOR-WOOFER
Color : WHITE
# of pins : 3




Pin Description Circuit
1 AMPLIFIED LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
2 - -
3 AMPLIFIED LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL

Component Location - 41
