Speaker-Subwoofer

Component ID: 401

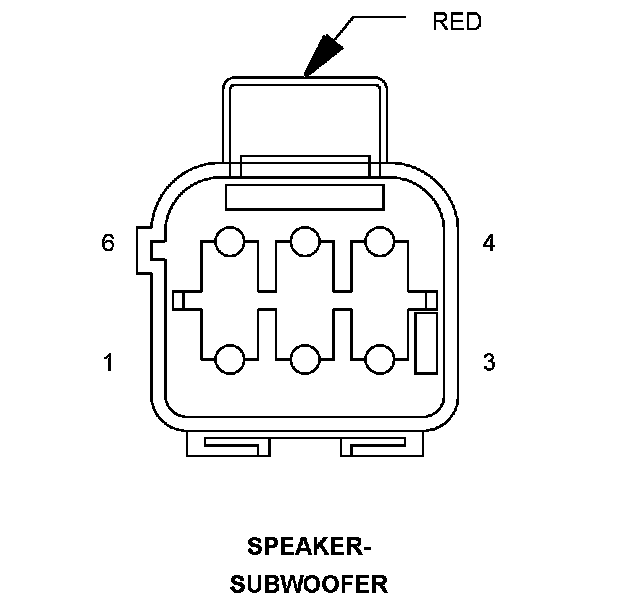

Component : SPEAKER-SUBWOOFER

Connector:
Name : SPEAKER-SUBWOOFER
Color : RED
# of pins : 6




Pin Description Circuit
1 AMPLIFIED SUBWOOFER 2 (+) X301 18GY/WT
2 - -
3 AMPLIFIED SUBWOOFER 1 (+) X300 18GY/BR
4 AMPLIFIED SUBWOOFER 1 (-) X390 18DG/BR
5 - -
6 AMPLIFIED SUBWOOFER 2 (-) X391 18DG/WT

Component Location - 31




Component Location - 35
