Television / Monitor

Component ID: 197

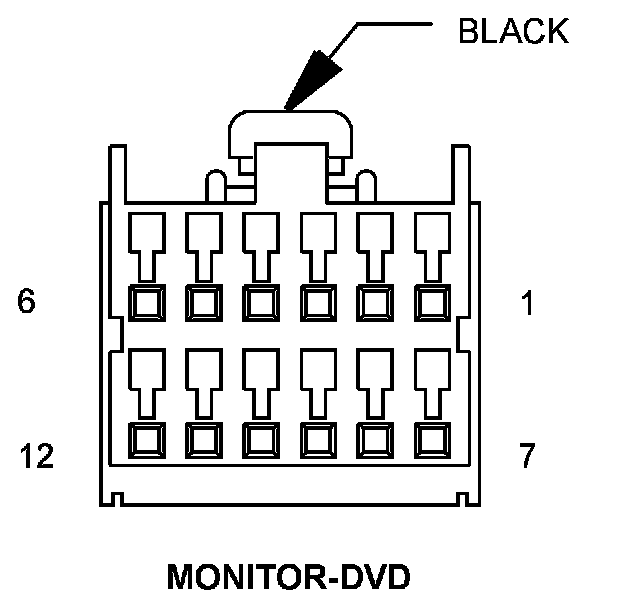

Component : MONITOR-DVD

Connector:
Name : MONITOR-DVD
Color : BLACK
# of pins : 12




Pin Description Circuit
1 FUSED B(+) X114 20GY/TN
2 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) X211 20YL/GY
3 HEADPHONE I/R XMTR ENABLE X963 22WT
4 HEADPHONE AUDIO SIGNAL LEFT X961 22GY/OR
5 VIDEO CONTROL X915 22GY/LB
6 VIDEO SIGNAL X515 22GY/OR
7 VIDEO RETURN X530 20GY/DB
8 - -
9 VIDEO PLAY SIGNAL X555 22VT/OR
10 HEADPHONE AUDIO SIGNAL RIGHT X960 22GY/WT
11 HEADPHONE RETURN X962 22DG/WT
12 SHIELD X955 22

Component Location - 44
