Trailer Connector

Component ID: 431

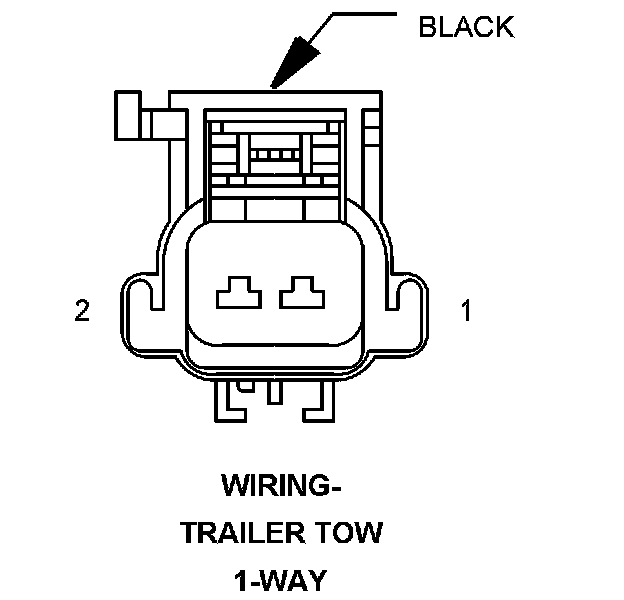

Component : WIRING-TRAILER TOW 1-WAY

Connector:
Name : WIRING-TRAILER TOW 1-WAY
Color : BLACK
# of pins : 2




Pin Description Circuit
1 - -
2 FUSED B(+) A115 12YL/RD

Component Location - 28
