Instrument Cluster / Carrier: Locations

Base Instrument Cluster:

Premium Instrument Cluster:

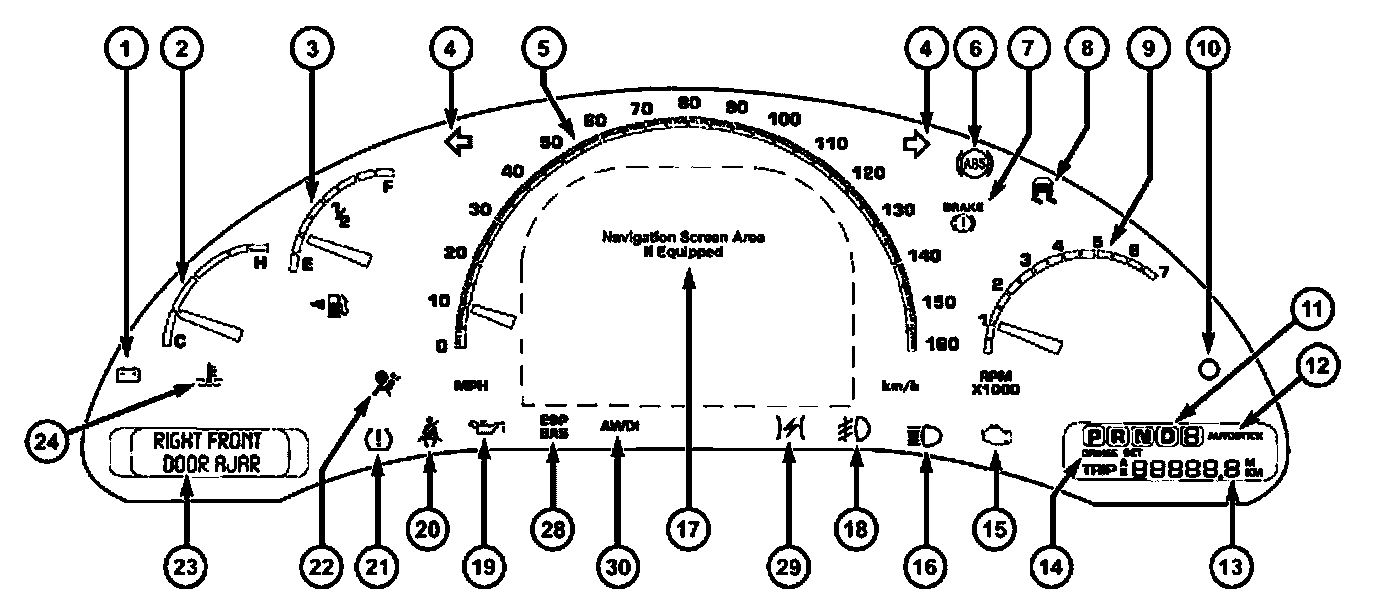

1. Voltage Light
2. Temperature Gauge
3. Fuel Gauge
4. Turn Signal Indicators
5. Speedometer
6. Anti-Lock Light
7. Brake System Warning Light
8. Traction Control Indicator - If Equipped
9. Tachometer
10. Trip Odometer
11. AutoStick Light
12. Odometer/Trip Odometer
13. Odometer/Trip Odometer
14. Cruise Indicator
15. Malfunction Indicator Light
16. High Beam Light
17. Navigation Screen/Rear View Camera - If Equipped
18. Front Fog Light Indicator - If Equipped
19. Oil Pressure Warning Light
20. Seat Belt Reminder Light
21. Tire Pressure Monitoring Telltale Lamp - If Equipped
22. Airbag Light
23. Electronic Vehicle Information Center Display - If Equipped
24. Engine Temperature Warning Light
25. Liftgate Ajar - If Equipped
26. Door Ajar Light - If Equipped
27. Washer Fluid Light - If Equipped
28. Electronic Stability Program (ESP) Warning Light/Brake Assist System (BAS) Warning Light - If Equipped
