Windshield Washer Pump: Locations

Component ID: 221
Component : PUMP-WASHER-WINDSHIELD

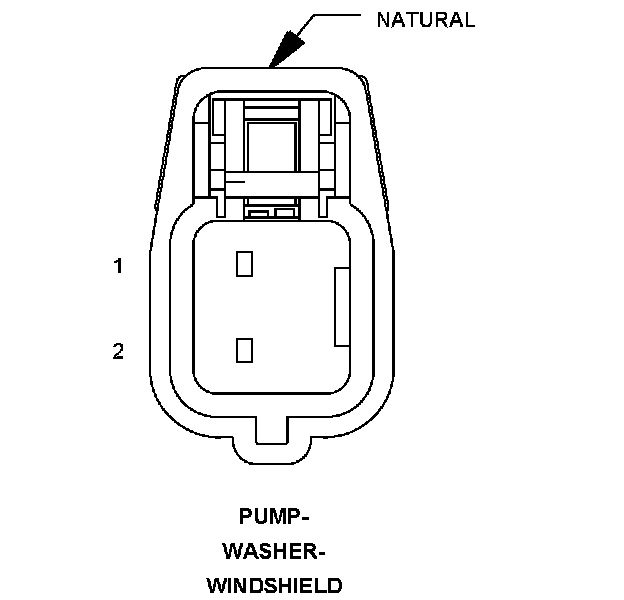

Connector:
Name : PUMP-WASHER-WINDSHIELD
Color : NATURAL
# of pins : 2




Pin Description Circuit
1 FRONT WASHER PUMP MOTOR CONTROL W10 18BR
2 REAR WASHER PUMP MOTOR CONTROL W20 18BR/YL

Component Location - 6

3.8L:

Component Location - 9

4.0L:
