VTSS Does Not Trip From Left Rear Door

*VTSS DOES NOT TRIP FROM LEFT REAR DOOR

For a complete wiring diagram refer to Diagrams/Electrical

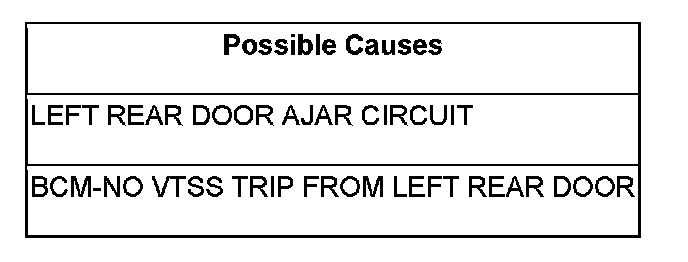

Diagnostic Test

1. CHECK DOOR AJAR STATUS

NOTE: For the results of this test to be valid, the security system must arm and flash the VTSS indicator properly.

With the scan tool, read the Left Rear Door Ajar SW status.

Open the left rear door.

Does the scan tool display LEFT REAR DOOR AJAR SW: CLOSED?

Yes

- Replace and program the Body Control Module.
- Perform VTSS VERIFICATION TEST - 1A. VTSS Verification Test

No

- Refer to symptom LEFT REAR DOOR AJAR CKT OPEN in the INTERIOR LIGHTING category.
- Perform VTSS VERIFICATION TEST - 1A. VTSS Verification Test
