Installation

INSTALLATION

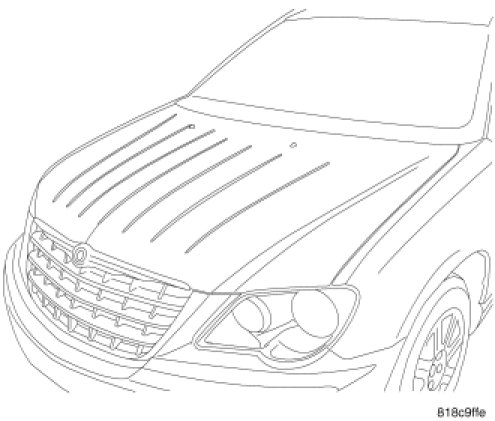

1. Place hood in position on vehicle. With assistance from a helper at the opposite side of the vehicle to support the hood, install bottom bolts to hold hood to hinge finger tight.

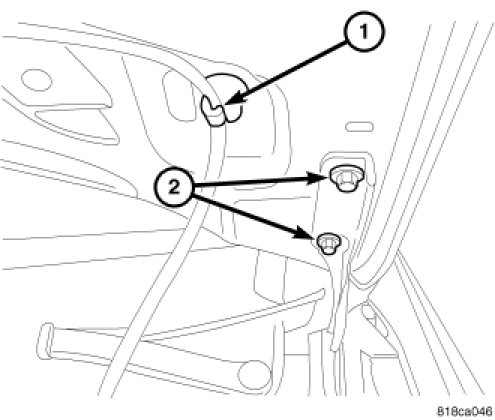

2. Install top bolts (2) attaching hood to hinge finger tight.

3. When installing hood, align all marks and secure bolts. The hood should be aligned. Refer to Body and Frame / Specifications.

4. Verify hood operation and alignment.

5. Tighten bolt to 14 Nm (120 in. lbs.).

6. Attach wiper hose (1) to hood.

7. Close hood.
