All Doors (Except Driver) Fail To Lock

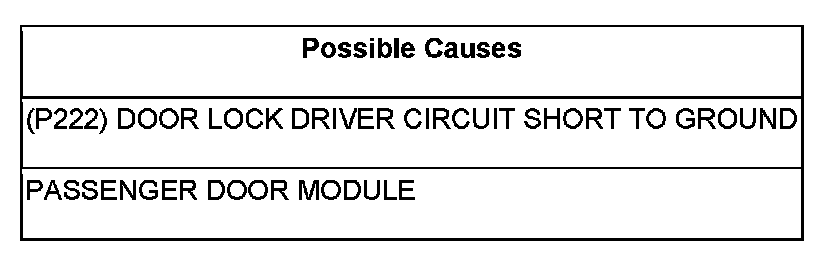

*ALL DOORS (EXCEPT DRIVER) FAIL TO LOCK

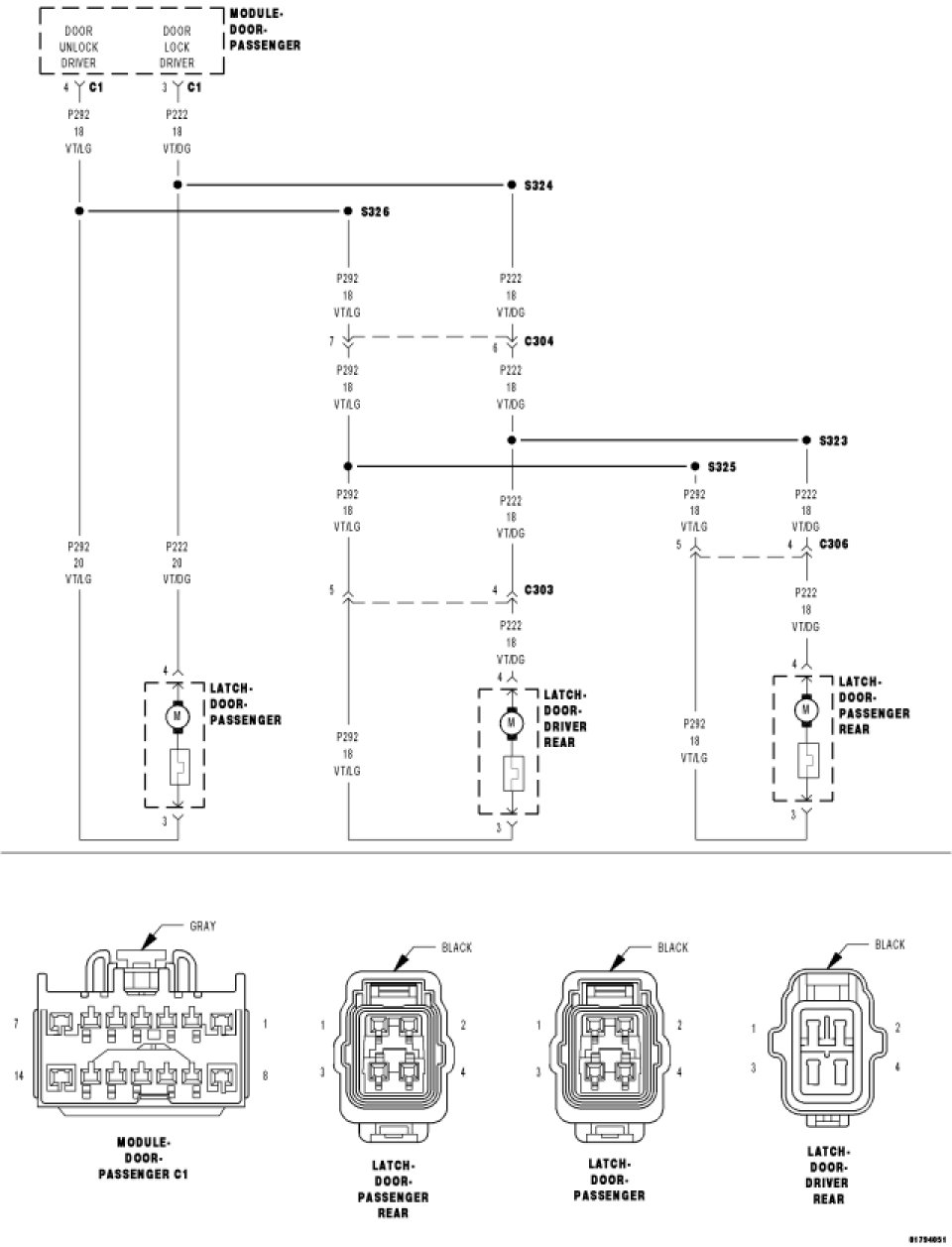

For a complete wiring diagram refer to Diagrams/Electrical.





Diagnostic Test

1. (P222) DOOR LOCK DRIVER WIRE SHORT TO GROUND





Turn the ignition off.

Remove the inner door trim panel to gain access to the Passenger Door Module connector.

Disconnect the Passenger Door Module "C1" connector.

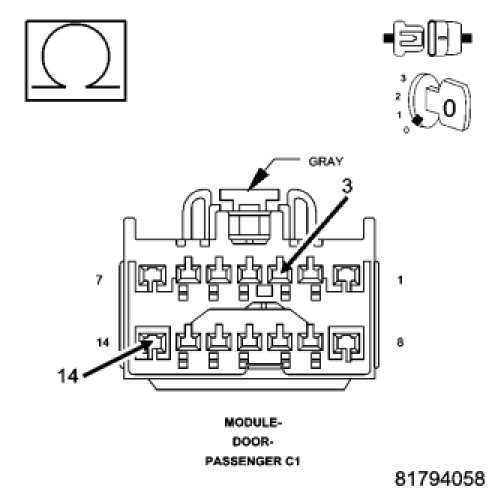

Measure the resistance between (Z822) Ground and the (P222) Door Lock Driver Circuit in the PDM "C1" connector.

Is the resistance below 20 ohms?

Yes

- Repair the (P222) Door Lock Driver circuit for a short to ground.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Passenger Door Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
