Mirror-Outside Rearview-Driver

Component ID: 172

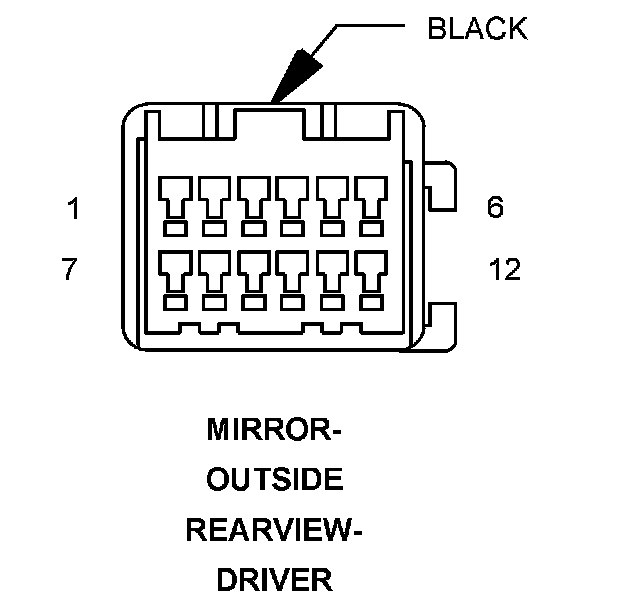

Component : MIRROR-OUTSIDE REARVIEW-DRIVER

Connector:
Name : MIRROR-OUTSIDE REARVIEW-DRIVER
Color : BLACK
# of pins : 12




Pin Description Circuit
1 DRIVER MIRROR VERTICAL POSITION SIGNAL P67 22OR/TN
2 DRIVER MIRROR SENSOR GROUND P69 22WT/TN
3 DRIVER MIRROR HORIZONTAL POSITION SIGNAL P65 22VT/TN
4 DRIVER MIRROR COMMON DRIVER P73 22TN/VT
5 DRIVER MIRROR HORIZONTAL DRIVER P75 22TN/LG
6 DRIVER MIRROR VERTICAL DRIVER P71 22TN/DG
7 - -
8 DRIVER MIRROR SENSOR SUPPLY P669 22OR/LG
9 AUTO DAY/NIGHT MIRROR (-) P114 20TN/WT
10 AUTO DAY/NIGHT MIRROR (+) P112 20TN/OR
11 DRIVER HEATED MIRROR DRIVER P53 20LG/OR
12 DRIVER HEATED MIRROR FEED C17 20LB/WT

Component Location - 41
