Interior Rearview Mirror - Removal
Interior Rearview Mirror - Removal

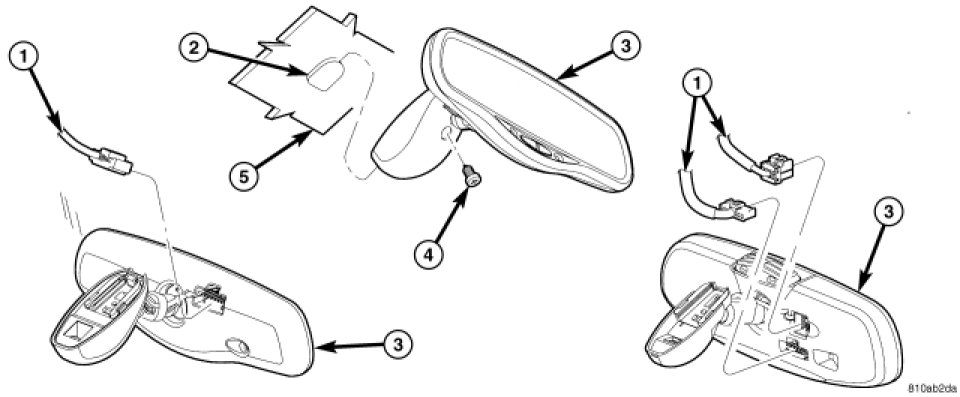

REMOVAL
1.
If equipped, disconnect mirror wire connector(s).
2.
Loosen the mirror base set screw .
3.
Slide the mirror base upward and off the support button.
