Outside Rearview Mirror - Removal

REMOVAL
1. Using a Trim Stick C-4755 or equivalent, move the front door frame molding.

2. Remove door trim panel and water dam.

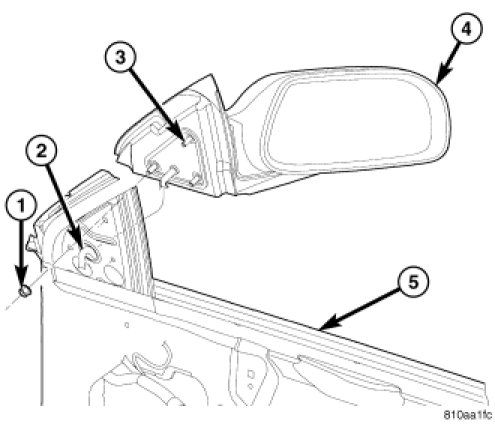

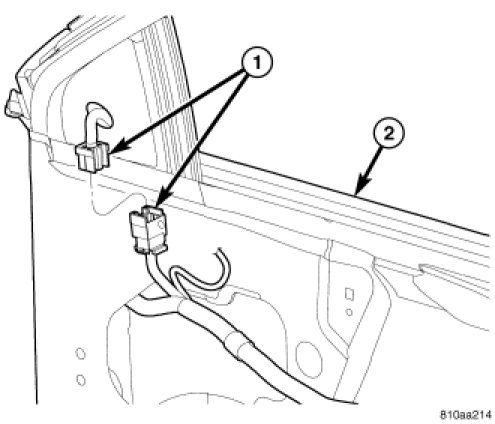

3. Disconnect the electrical connector, if equipped.

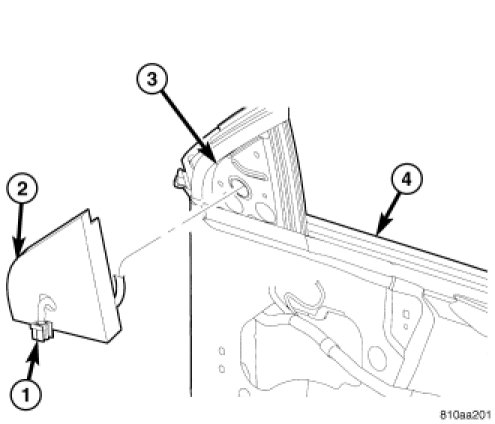

4. Using a trim stick or equivalent, remove the mirror flag stuffier.





5. Remove the nuts attaching mirror.





6. Remove the mirror from the door.
