Motor-Seat Adjuster-Driver Rear Riser

Component ID: 205
Component : MOTOR-SEAT ADJUSTER-DRIVER REAR RISER

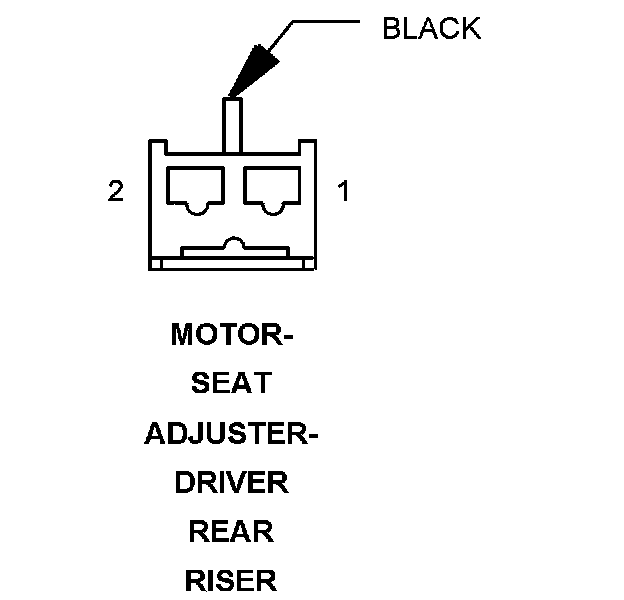

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER REAR RISER
Color : BLACK
# of pins : 2




Pin Description Circuit
1 DRIVER SEAT REAR DOWN DRIVER P113 14LG/VT
2 DRIVER SEAT REAR UP DRIVER P111 14LG/YL

Component Location - 38
