Front Seat Back Panel

FRONT SEAT BACK PANEL

REMOVAL

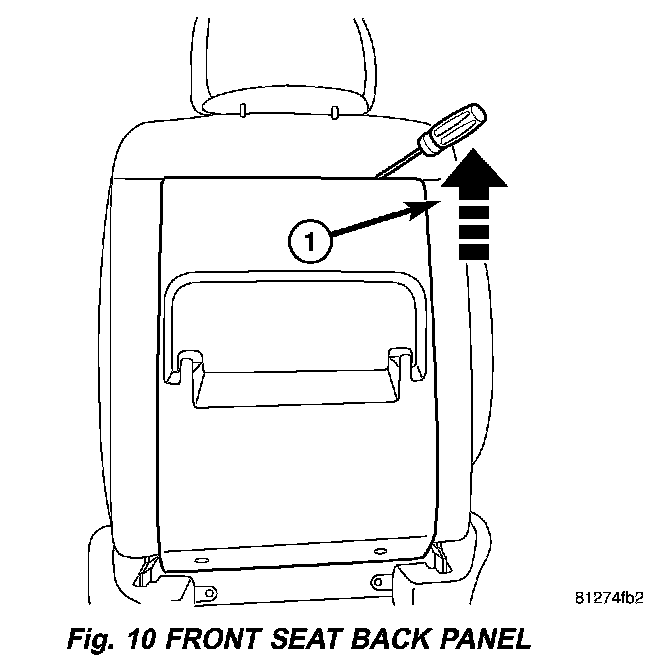

Fig. 10:

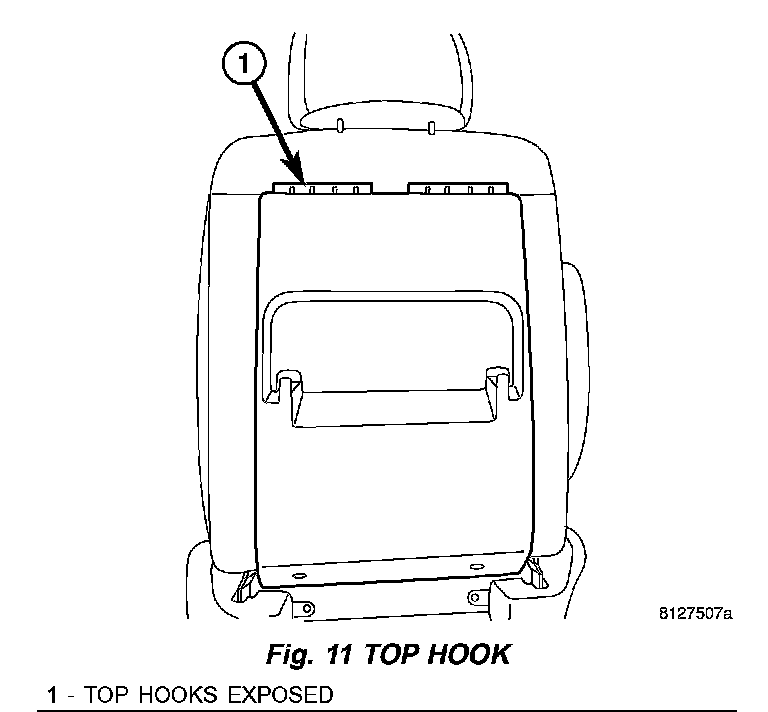

Fig. 11:

1. Using a trim tool C-4755 or equivalent, disengage the front seat (Fig. 10) and (Fig. 11).

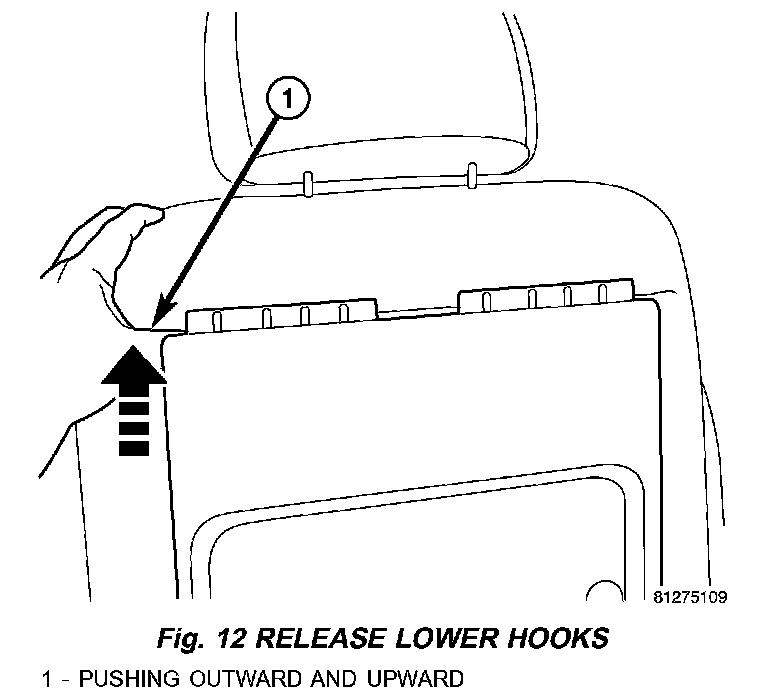

Fig. 12:

2. Pushing the top edge of back panel outward and pushing upward that the same time till lower hooks are clear of the lower metal bracket (Fig. 12).

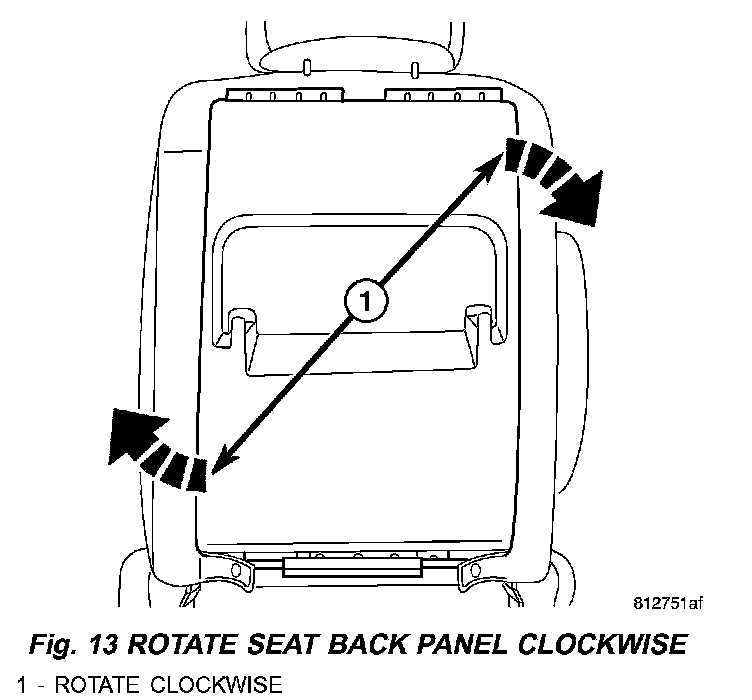

Fig. 13:

3. Gently rotate the seat back panel clockwise until upper left hook and lower right hook disengage from trim ring (Fig. 13).

Fig. 14:

4. Gently rotate the seat back panel counter clockwise until upper right hook and lower left hook disengage from trim ring and remove front seat back panel for seat back (Fig. 14).

INSTALLATION

1. Place front seat back panel into position and start lower hooks.
2. Push on front seat back panel to engage locking clips.
3. Grasp the top of the seat back panel and push downward to engage the top hooks.
