Front Seat Shields

FRONT SEAT SHIELDS

REMOVAL

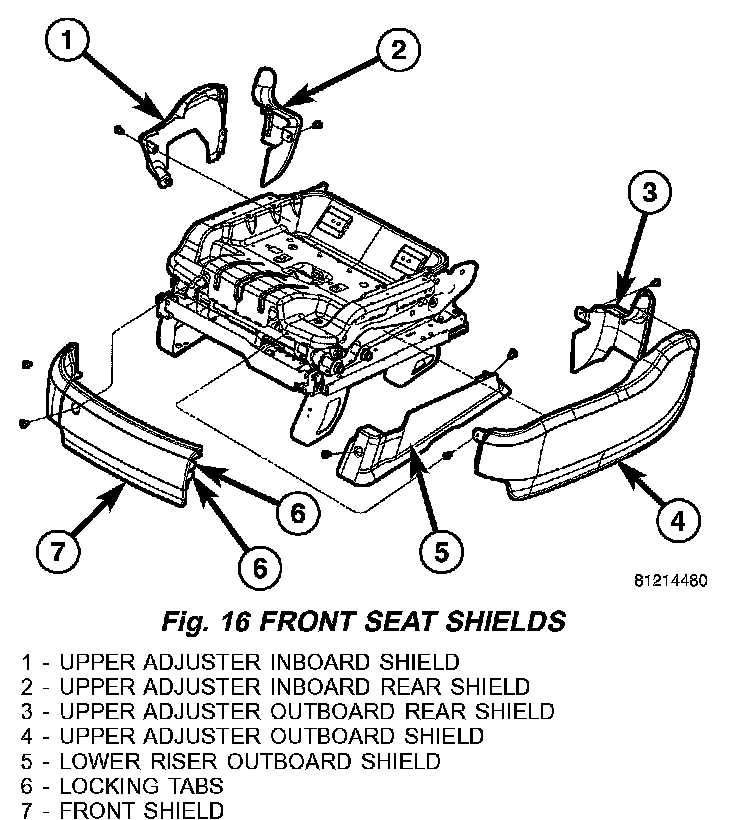

Fig. 16:

The front seat shield positions and attachment points (Fig. 16).

UPPER ADJUSTER INBOARD AND REAR SHIELD
1. Remove upper adjuster inboard attaching screw (Fig. 16).
2. Pull rear edge away from upper adjuster inboard rear shield to release locking tab.
3. Remove upper adjuster inboard rear shield attaching screw and remove shield.

FRONT SHIELD

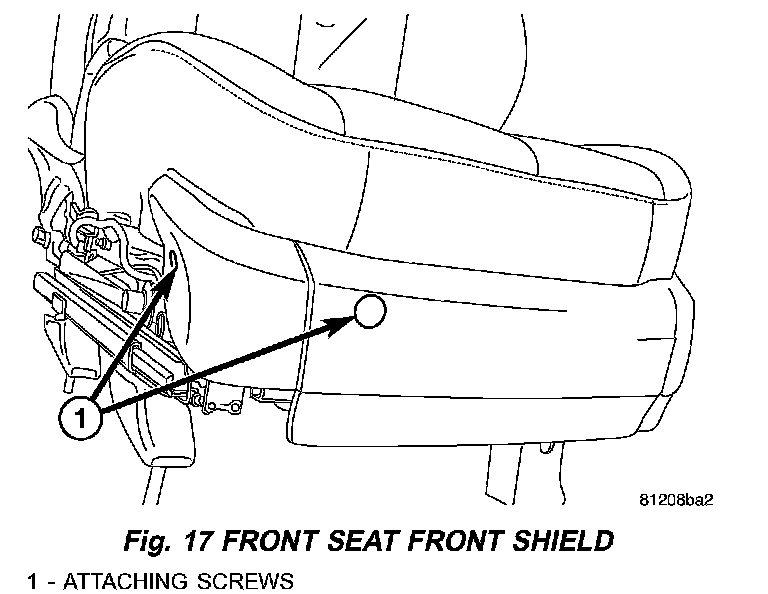

Fig. 17:

1. Remove front shield attaching screws (Fig. 17).

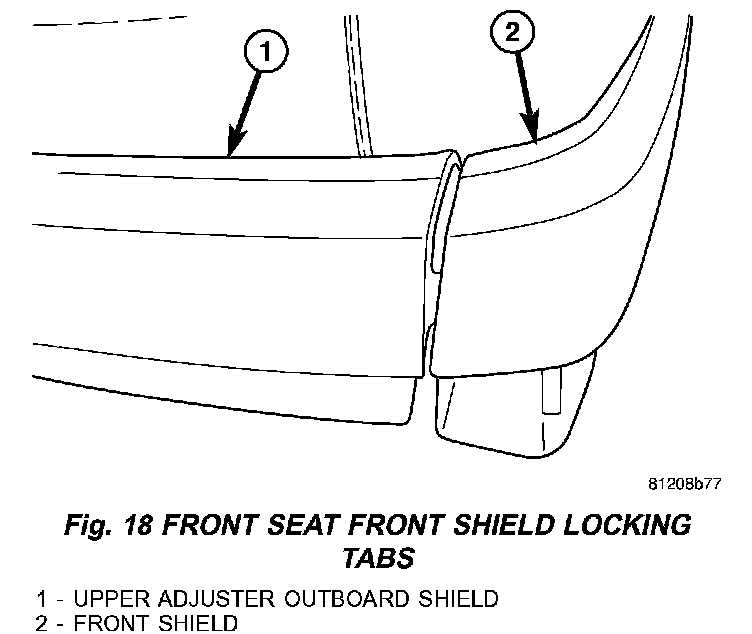

Fig. 18:

2. Pull forward on front shield edge by the upper adjuster outboard shield to disengage locking tabs (Fig. 16) and (Fig. 18).
3. Remove front shield.

UPPER ADJUSTER OUTBOARD AND REAR SHIELD
1. Remove front attaching screw (Fig. 16).
2. Pull rear edge away from upper adjuster outboard rear shield to release locking tab.
3. Remove upper adjuster outboard rear shield attaching screw and remove shield.

LOWER RISER SHIELD
1. Remove front and rear attaching screws (Fig. 16).
2. Remove lower riser shield.

INSTALLATION

UPPER ADJUSTER INBOARD AND REAR SHIELD
1. Place upper adjuster inboard rear shield into position and install attaching screw (Fig. 16).
2. Press on rear edge upper adjuster inboard shield locking tabs to upper adjuster inboard rear shield to engage locking tabs.
3. Install upper adjuster inboard attaching screw.

FRONT SHIELD
1. Place front shield in position.
2. Press on front shield edge by the upper adjuster outboard shield to engage locking tabs (Fig. 16) and (Fig. 18).
3. Install front shield attaching screws (Fig. 17).

UPPER ADJUSTER OUTBOARD AND REAR SHIELD

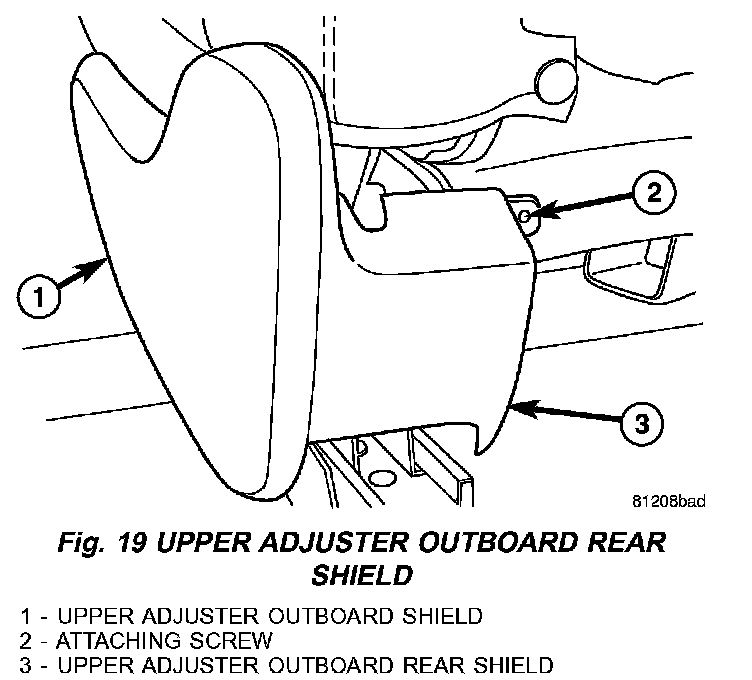

Fig. 19:

1. Place upper adjuster outboard rear shield into position and install attaching screw (Fig. 16) and (Fig. 19).
2. Place upper adjuster outboard shield into position.
3. Press on rear edge upper adjuster outboard shield locking tabs to upper adjuster outboard rear shield to engage locking tabs.
4. Install front attaching screw.

LOWER RISER SHIELD
1. Place lower riser shield into position (Fig. 16).
2. Install front and rear attaching screws.
