SECOND ROW SEAT CUSHION FOAM/COVERREMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove headrest.
3. Remove second row seat.
4. Disconnect heat element wire harness.
5. Remove two screws attaching outer side shield buckle side.
6. Remove screw attaching floor dump release handle and remove handle.
7. Remove front recliner handle (snaps on).
8. Remove three screws attaching side shield at recliner handle side.
9. Remove three screws attaching inner side shield hinge area.
10. Remove hinge to floor plastic cover.
11. Remove four screws attaching lower plastic cover, under side of seat.

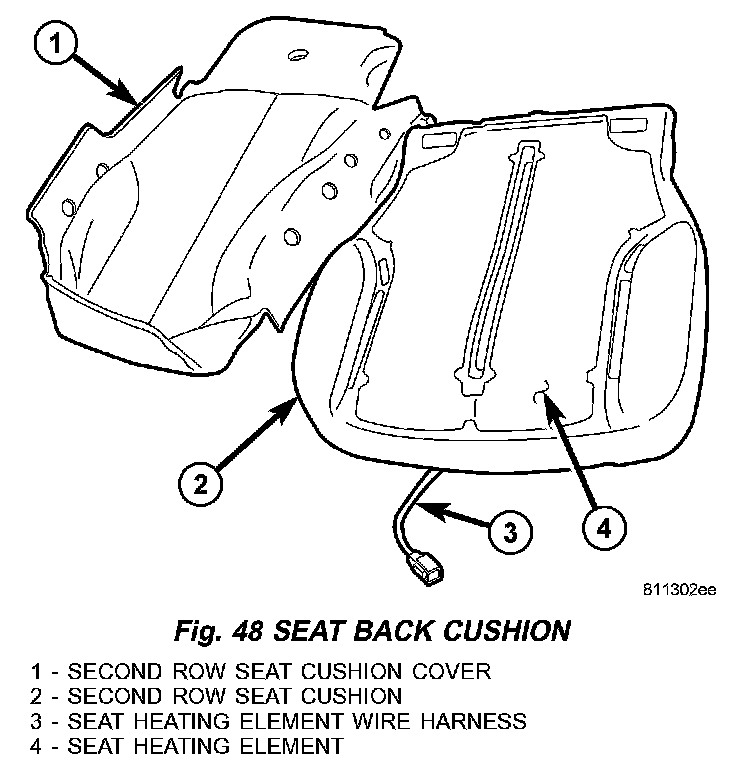

Fig. 48:
12. Disengage J-straps and push pins at cushion cover (Fig. 48).
13. Remove cushion and cover from seat pan.
14. Remove cover from cushion.
INSTALLATION
1. Place cover on cushion (Fig. 48).
2. Install cushion and cover to seat pan.
3. Engage J-straps and push pins to seat pan.
4. Install four screws attaching lower plastic cover, to under side of seat.
5. Install hinge to floor plastic cover.
6. Install three screws attaching inner side shield hinge area.
7. Install three screws attaching side shield at recliner handle side.
8. Push on front recliner handle to lock into position.
9. Install screw attaching floor dump release handle.
10. Install two screws attaching outer side shield buckle side.
11. Connect heat element wire harness.
12. Install first row seat.
13. Install headrest.
14. Connect battery negative cable.
