Second Row Seat Riser
SECOND ROW SEAT RISERREMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove headrest.
3. Remove second row seat.
4. Disconnect heat element wire harness.

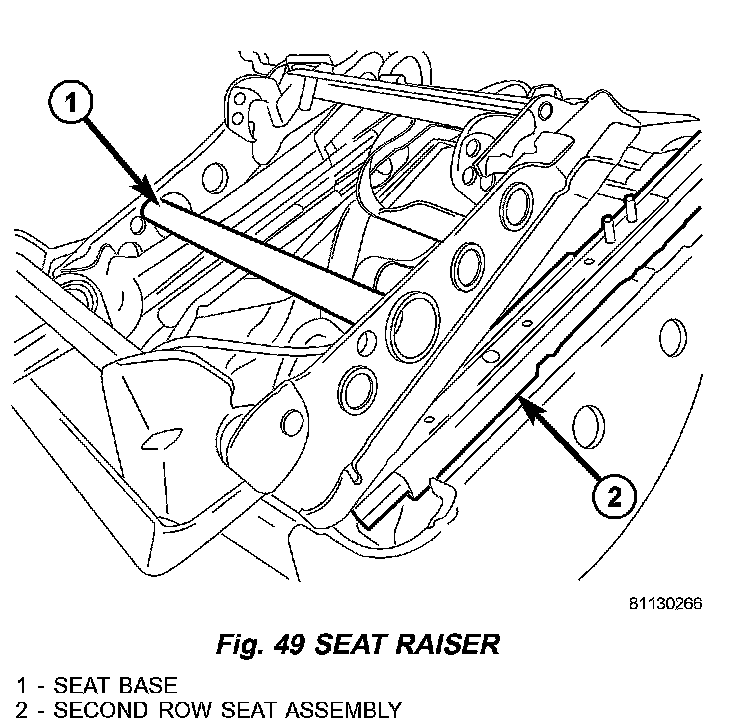

Fig. 49:
5. Turn seat over (Fig. 49).
6. Remove four nuts attaching seat base to seat assembly.
7. Remove seat base.
INSTALLATION
1. Place seat base into position on second seat assembly.
2. Install four nuts attaching seat base to seat assembly (Fig. 49).
3. Place seat into position.
4. Connect heating element wire harness.
5. Install second row seat.
6. Install headrest.
7. Disconnect and isolate the battery negative cable.
