INSTALLATION
1.
Connect the electrical connector to switch.
2.

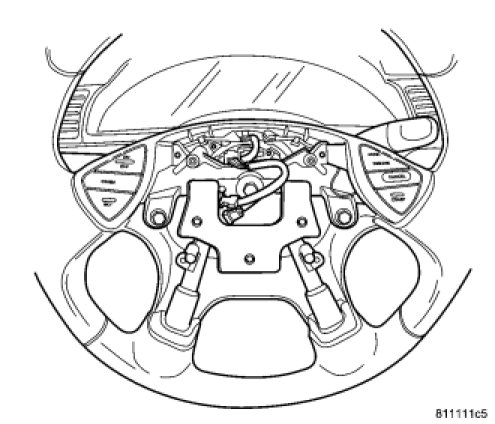

Install switch.
3.

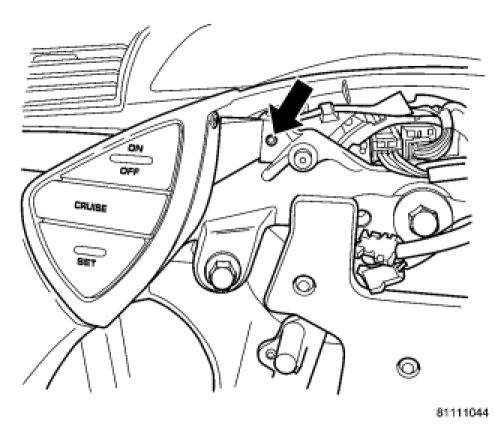

Install the speed control switch mounting screw.
4.
Tighten Screw.
5.

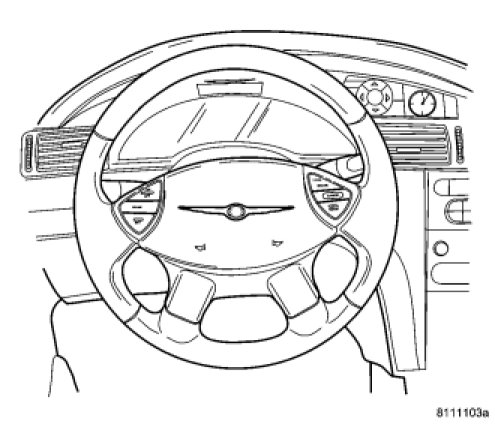

Install the Driver side Airbag.
6.
Connect the negative battery cable.
