Alternator

Component ID: 127
Component : GENERATOR

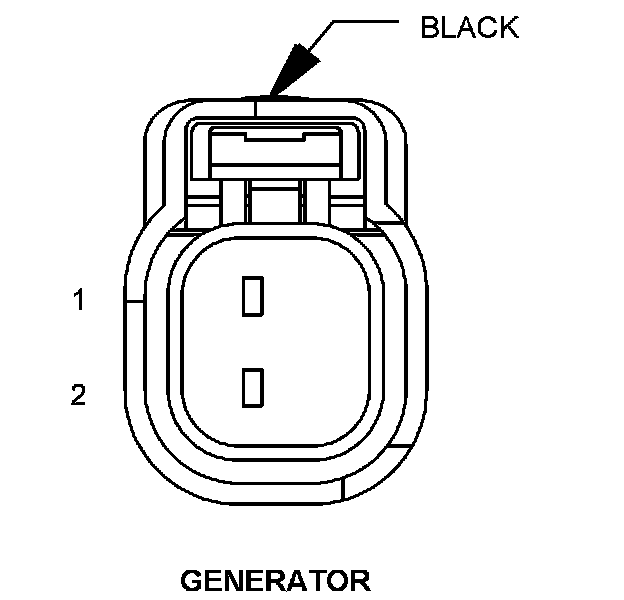

Connector:
Name : GENERATOR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 GEN FIELD CONTROL K20 18BR/GY
2 FUSED B(+) A804 18RD/GY

Component Location - 11




Component Location - 13

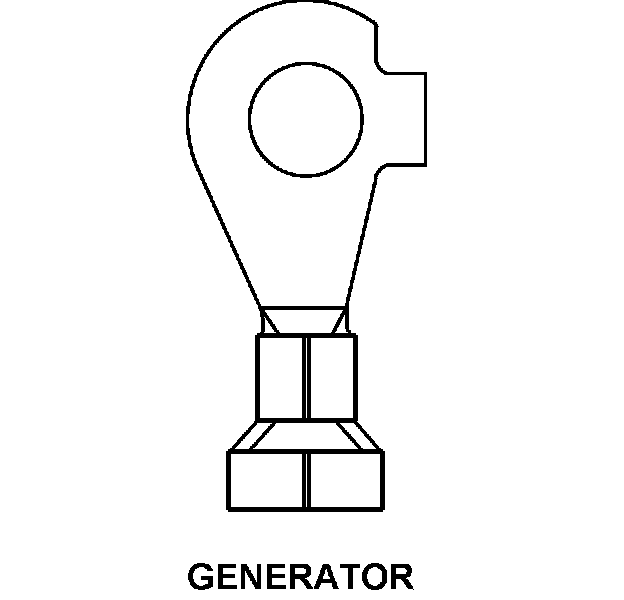

Connector:
Name : GENERATOR
Color :
# of pins : 1




Pin Description Circuit
1 FUSED B(+) A801 4RD/GY

Component Location - 11




Component Location - 13
