Amplifier, Sound System

Component ID: 11
Component : AMPLIFIER-RADIO

Connector:

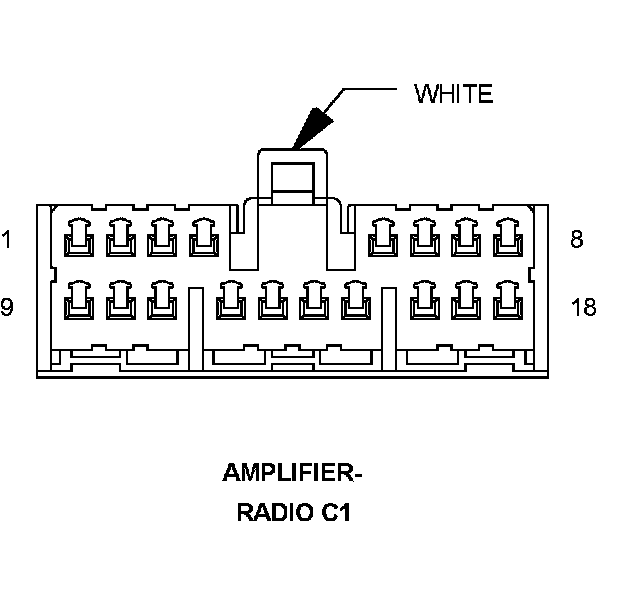

Name : AMPLIFIER-RADIO C1
Color : WHITE
# of pins : 18




Pin Description Circuit
1 FUSED B(+) A116 16YL/RD
2 - -
3 AMPLIFIED SUBWOOFER 1 (+) X300 18GY/BR
4 AMPLIFIED SUBWOOFER 2 (-) X391 18DG/WT
5 AMPLIFIED LEFT REAR DOOR SPEAKER (+) X205 18GY/LG
6 AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (+) X200 18GY/DB
7 AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
8 AMPLIFIED LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
9 FUSED B(+) A116 16YL/RD
10 - -
11 AMPLIFIED SUBWOOFER 1 (-) X390 18DG/BR
12 AMPLIFIED SUBWOOFER 2 (+) X301 18GY/WT
13 AMPLIFIED RIGHT REAR DOOR SPEAKER (-) X296 18DG/GY
14 AMPLIFIED RIGHT REAR DOOR SPEAKER (+) X206 18DG/LG
15 AMPLIFIED LEFT REAR DOOR SPEAKER (-) X295 18GY/DG
16 AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (-) X290 18GY/OR
17 AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
18 AMPLIFIED LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT

Component Location - 31




Component Location - 33




Component Location - 35






Connector:
Name : AMPLIFIER-RADIO C2
Color : WHITE
# of pins : 12




Pin Description Circuit
1 RADIO LEFT AUDIO (+) X53 20DG
2 RADIO LEFT AUDIO (-) X55 20DG/BR
3 RIGHT AUDIO OUTPUT X704 20DG/YL
4 GROUND Z513 16BK
5 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
6 RADIO RIGHT AUDIO (-) X56 20GY/BR
7 RADIO RIGHT AUDIO (+) X54 20GY
8 LEFT AUDIO OUTPUT X703 20DG/OR
9 NAVIGATION AUDIO (+) X400 20GY/WT
10 NAVIGATION AUDIO (-) X940 20GY/LB
11 GROUND Z516 16BK/GY
12 PCI BUS D25 20WT/VT

Component Location - 31




Component Location - 33




Component Location - 35
