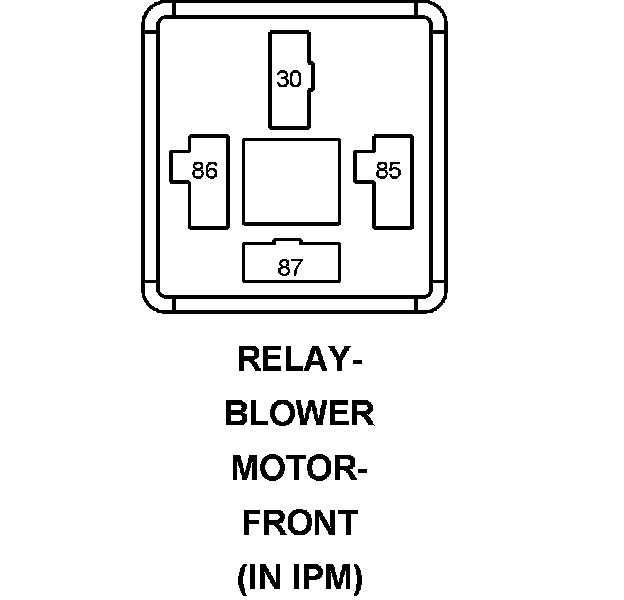

Relay-Blower Motor-Front

Component ID: 227
Component : RELAY-BLOWER MOTOR-FRONT

Connector:
Name : RELAY-BLOWER MOTOR-FRONT
Color :
# of pins : 0




30 B(+) INTERNAL
85 B(+) INTERNAL
86 FRONT BLOWER MOTOR RELAY CONTROL INTERNAL
87 FUSED FRONT BLOWER MOTOR RELAY OUTPUT C7 12DB
87A - -
