Blower Motor Resistor

Component ID: 239
Component : RESISTOR-BLOWER MOTOR

Connector:
Name : RESISTOR-BLOWER MOTOR C1
Color : BLACK
# of pins : 6
Qualifier : (MTC)




Pin Description Circuit
1 - -
2 BLOWER MOTOR HIGH DRIVER C75 12DB/GY
3 BLOWER MOTOR M2 DRIVER C73 14DB/VT
4 FUSED FRONT BLOWER MOTOR RELAY OUTPUT C7 12DB
5 BLOWER MOTOR M1 DRIVER C72 16DB/OR
6 BLOWER MOTOR LOW DRIVER C71 16DB/BR

Component Location - 14




Component Location - 15






Connector:

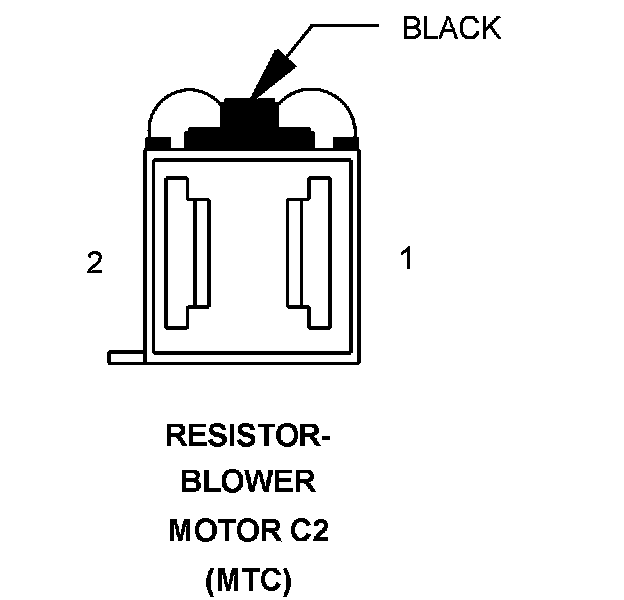

Name : RESISTOR-BLOWER MOTOR C2
Color : BLACK
# of pins : 2
Qualifier : (MTC)




Pin Description Circuit
1 BLOWER SUPPLY C112 12DG
2 BLOWER DRIVER C113 12BK

Component Location - 14




Component Location - 15
