C100

Component ID: 24
Component : C100

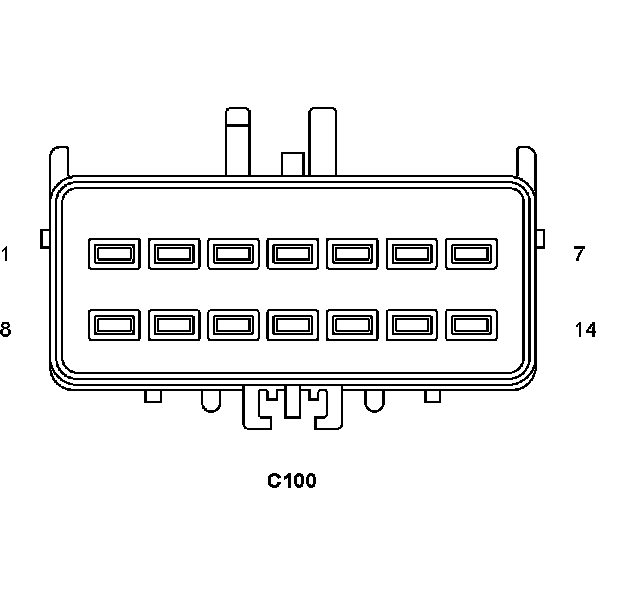

Connector:
Name : C100
Color :
# of pins : 14
Gender : FEMALE

Pin Description Circuit
1 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20LB/TN
2 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/LB
3 RIGHT FRONT TURN SIGNAL LAMP DRIVER L60 18WT/TN
4 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
5 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
6 LEFT FRONT TURN SIGNAL LAMP DRIVER L61 18LG/WT
7 SENSOR GROUND C918 20BK/LB
8 A/C PRESSURE SENSOR SUPPLY C818 20LB/OR
9 A/C PRESSURE TRANSDUCER SIGNAL C18 20LB/BR
10 AAT SIGNAL G31 20OR/VT
11 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
12 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
13 - -
14 - -

Component Location - 4

Component Location - 5

Component Location - 7

Component Location - 8

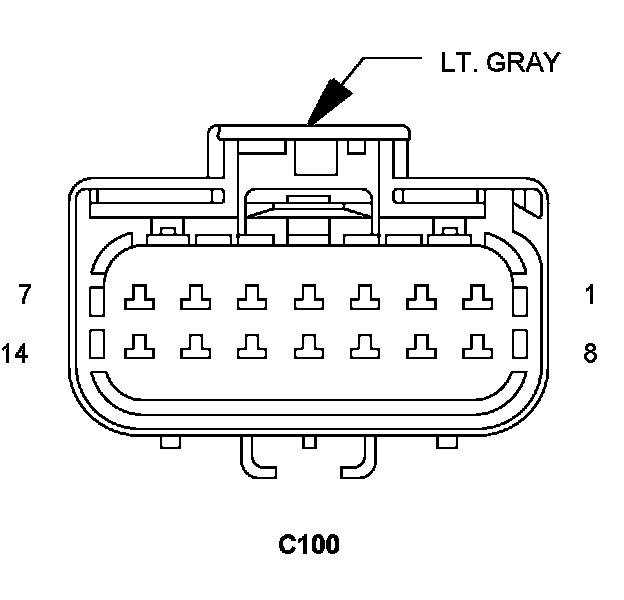

Connector:
Name : C100
Color : LT. GRAY
# of pins : 14
Gender : MALE

Component Location - 5

Component Location - 7

Component Location - 8
