C101

Component ID: 25
Component : C101

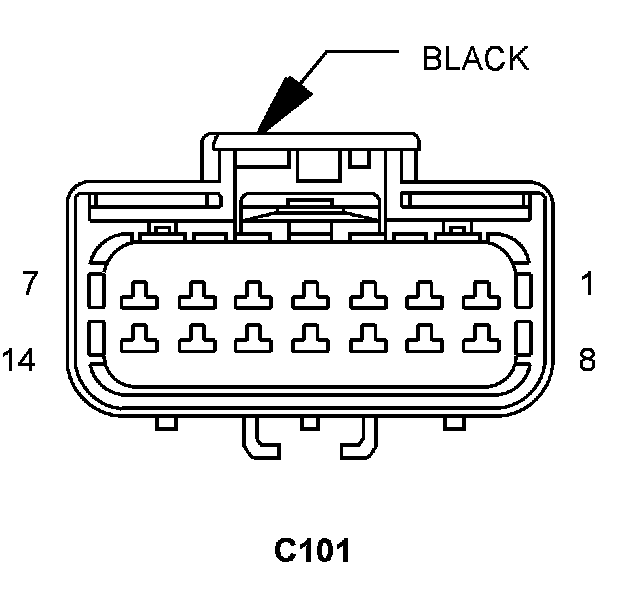

Connector:
Name : C101
Color : BLACK
# of pins : 14
Gender : FEMALE

Pin Description Circuit
1 APP SENSOR GROUND 1 K167 20BR/YL
2 - -
3 5 VOLT SUPPLY F855 20PK/YL
4 APP SIGNAL 1 K23 20BR/WT
5 S/C SWITCH GROUND K975 18BR/OR
6 - -
7 FUSED B(+) A923 18RD/LG
8 BRAKE SIGNAL 2 B16 20LB/DG
9 BRAKE SIGNAL 1 B29 20DG/WT
10 - -
11 - -
12 - -
13 RIGHT REAR WHEEL SPEED SENSOR SIGNAL B1 18DG/DB
14 RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B2 18DG/LB

Component Location - 1

Component Location - 4

Component Location - 7

Component Location - 8

Component Location - 13

Connector:
Name : C101
Color : BLACK
# of pins : 14
Gender : MALE

Component Location - 4

Component Location - 7

Component Location - 8

Component Location - 13
